SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
20 mA
Supply Voltage-Max (Vsup):
13.2 V
Supply Voltage-Min (Vsup):
10.8 V
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5176DDW Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5176DDW evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The output filter design should be optimized based on the specific application requirements, such as output voltage, current, and frequency. Texas Instruments provides a filter design tool and application notes that can help engineers optimize the output filter design for their specific use case.
The maximum junction temperature (Tj) for the TAS5176DDW is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
Texas Instruments provides a troubleshooting guide and application notes that can help engineers identify and resolve common issues with the TAS5176DDW, such as oscillations or instability. Additionally, engineers can use simulation tools and Spice models to simulate and analyze the circuit behavior.
The recommended components for the input and output capacitors depend on the specific application requirements, such as voltage, current, and frequency. Texas Instruments provides guidelines for capacitor selection in the datasheet and application notes, and engineers should consider factors such as capacitance, ESR, and voltage rating when selecting components.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5176DDW Overview

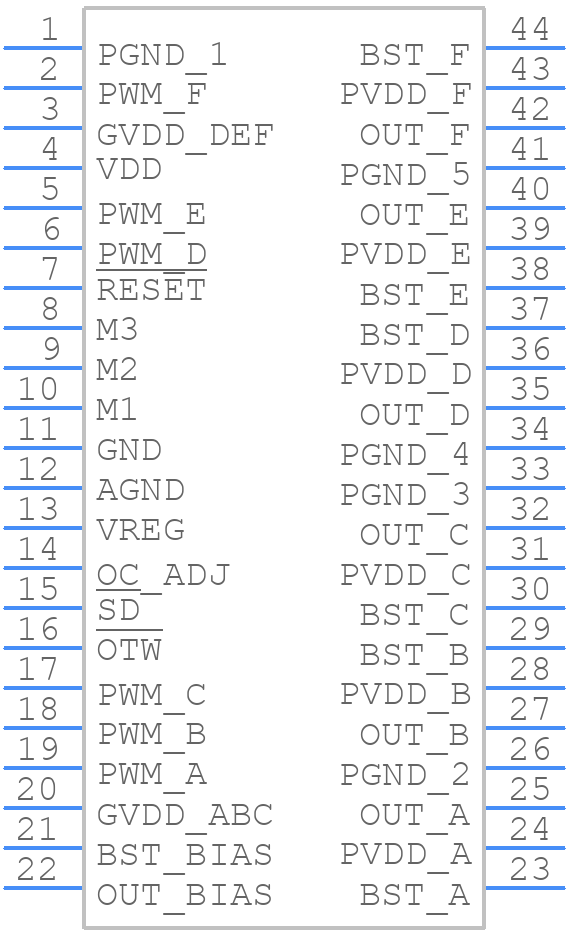

Use the download button to access the TAS5176DDW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS51,
or try a keyword search, such as Audio/Video Amplifiers
