SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
20 mA
Supply Voltage-Max (Vsup):
13.2 V
Supply Voltage-Min (Vsup):
10.8 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5186ADDVR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5186ADDVR datasheet, but it's essential to follow the guidelines for thermal management, decoupling, and signal routing to ensure optimal performance. A good starting point is to use the TI-provided layout as a reference and adapt it to your specific design requirements.
The TAS5186ADDVR has a built-in digital gain control that allows you to adjust the output power level. You can use the I2C interface to set the desired gain value, which ranges from -20 dB to +20 dB in 0.5 dB steps. Refer to the datasheet for the specific gain setting values and the I2C protocol for configuration.
The TAS5186ADDVR has a maximum operating temperature of 85°C (junction temperature). However, it's essential to ensure proper thermal management, such as using a heat sink or thermal pad, to maintain a safe operating temperature and prevent overheating.
The TAS5186ADDVR is designed to operate with a power supply voltage of 12 V to 15 V. While it's possible to use a different power supply voltage, it's not recommended as it may affect the device's performance, efficiency, and reliability. If you need to use a different voltage, consult with Texas Instruments or a qualified engineer to ensure the device operates within its specifications.
To troubleshoot issues with the TAS5186ADDVR, start by verifying the power supply voltage, clock signal, and I2C communication. Check the device's status registers and error flags to identify potential issues. Use an oscilloscope to monitor the output signal and verify it meets the expected specifications. If the issue persists, consult the datasheet, application notes, and Texas Instruments' support resources for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5186ADDVR Overview

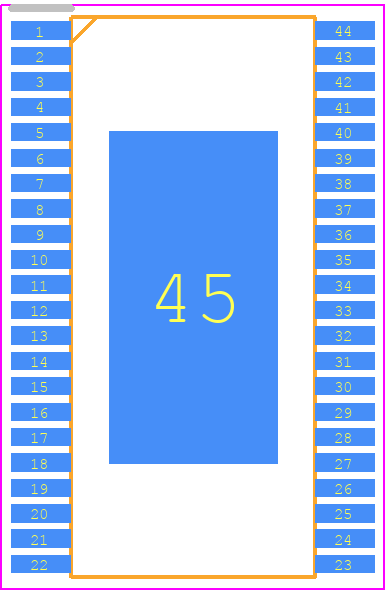

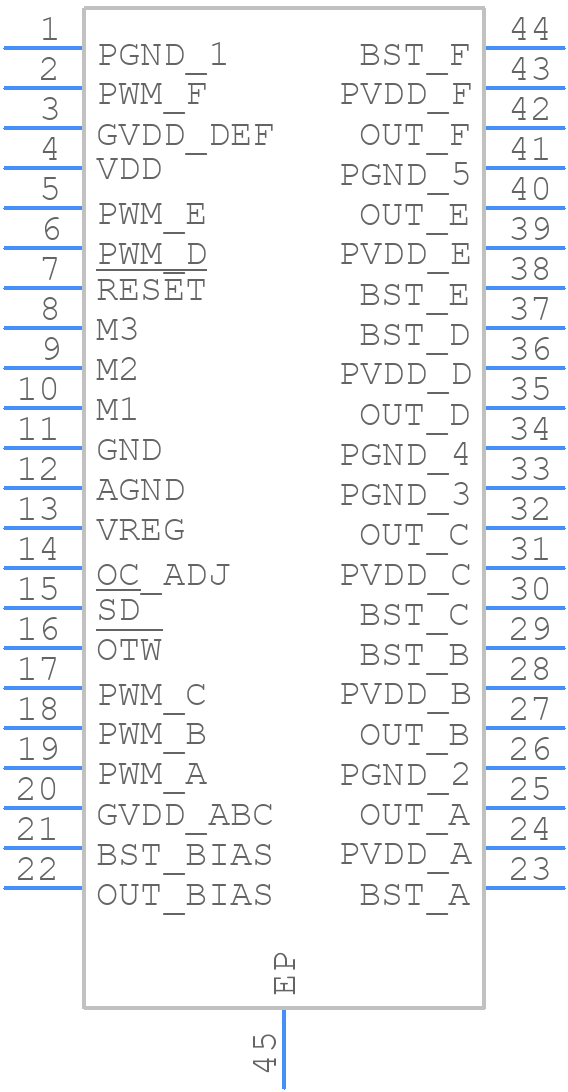

Use the download button to access the TAS5186ADDVR schematic symbol, PCB footprint, and 3D model.
