SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
20 mA
Supply Voltage-Max (Vsup):
13.2 V
Supply Voltage-Min (Vsup):
10.8 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5342LDDVR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5342LDDVR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5342LDDVR for low power consumption, ensure that the device is operated within the recommended voltage range (1.5V to 3.6V), use the lowest possible clock frequency, and disable unused features. Additionally, consider using the device's power-saving modes, such as the low-power standby mode or the shutdown mode.
The maximum allowed junction temperature for the TAS5342LDDVR is 150°C. Exceeding this temperature can lead to device failure or reduced lifespan. Ensure proper thermal management, such as using a heat sink or thermal pad, to keep the junction temperature within the recommended range.
While the TAS5342LDDVR is rated for a maximum output current of 2A, it's possible to use external current buffers or amplifiers to increase the output current. However, this requires careful design consideration to ensure stability, thermal management, and electromagnetic compatibility (EMC). Consult with a Texas Instruments application engineer or a qualified design expert for guidance.
To troubleshoot issues with the TAS5342LDDVR, start by reviewing the device's datasheet and application notes. Check the PCB layout, component values, and power supply quality. Use oscilloscopes or other diagnostic tools to measure the device's output and input signals. Consult with Texas Instruments' technical support or a qualified design expert for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5342LDDVR Overview

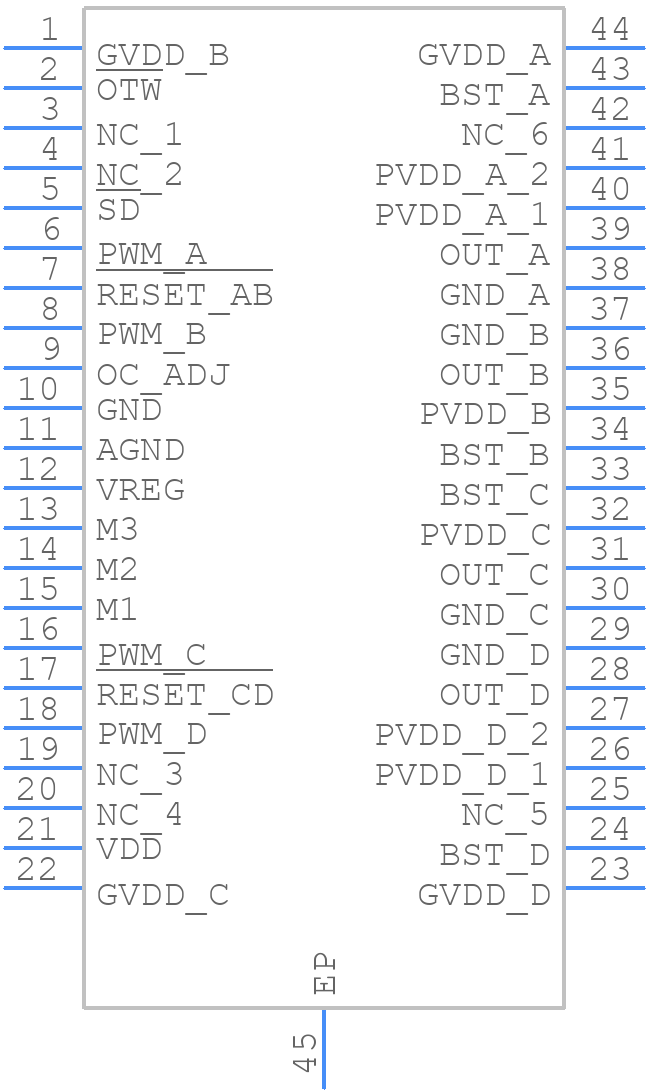

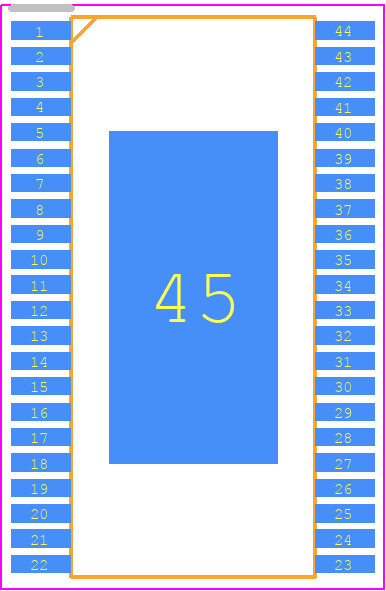

Use the download button to access the TAS5342LDDVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS53,
or try a keyword search, such as Audio/Video Amplifiers
