Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'TAS5414 PCB Layout Guidelines' application note (SLVAUH7) for optimal performance and thermal management.
To optimize thermal performance, ensure good thermal conductivity between the device and the PCB, use a heat sink or thermal pad, and follow the recommended PCB layout guidelines. Additionally, consider using a thermal interface material (TIM) to reduce thermal resistance.
The maximum power dissipation of the TAS5414ATPHDMQ1 is dependent on the operating conditions and thermal management. According to the datasheet, the maximum junction temperature (TJ) is 150°C, and the thermal resistance (RθJA) is 24.4°C/W. Engineers should calculate the maximum power dissipation based on their specific application and thermal design.
To troubleshoot issues with the TAS5414ATPHDMQ1, start by reviewing the datasheet and application notes, and then check the PCB layout, component values, and soldering quality. Use oscilloscopes and other diagnostic tools to identify the root cause of the issue. Texas Instruments also provides a 'TAS5414 Troubleshooting Guide' (SLVAUH8) that can be helpful in resolving common issues.
The recommended components for the TAS5414ATPHDMQ1 are listed in the datasheet and include capacitors, resistors, and inductors. Engineers should ensure that the selected components meet the specified requirements and are compatible with the device's operating conditions.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5414ATPHDMQ1 Overview

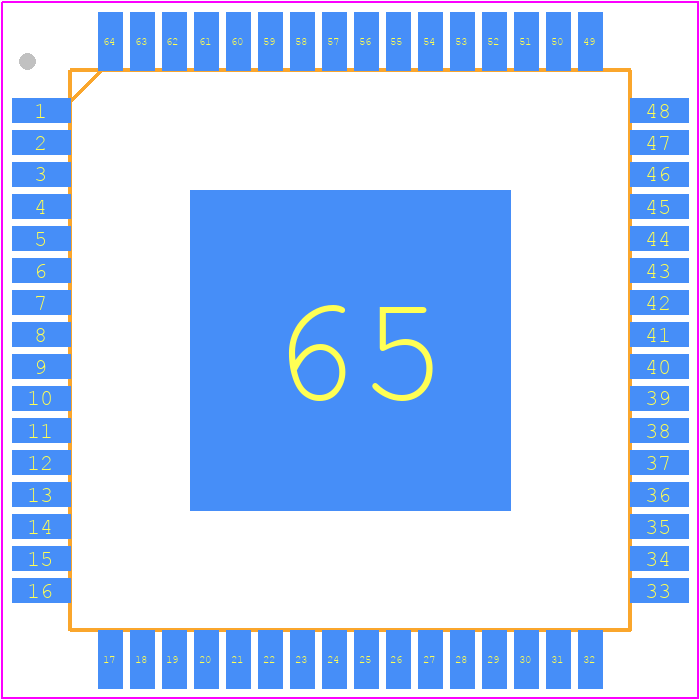

Use the download button to access the TAS5414ATPHDMQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS54,
or try a keyword search, such as Audio/Video Amplifiers
