TAS5414BTDKDRQ1 - Texas Instruments

Description: 4-Channel Automotive Digital Amplifiers

Download TAS5414BTDKDRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

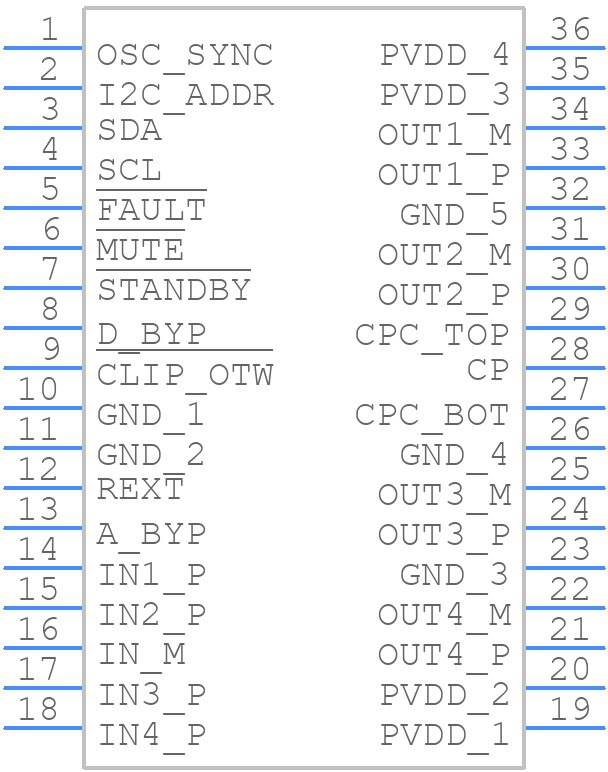

TAS5414BTDKDRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5414BTDKDRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DKD0036A
click to zoom
3D Models
TAS5414BTDKDRQ1 - Texas Instruments - 3D model - Small Outline Packages - DKD0036A
click to zoom

TAS5414BTDKDRQ1 Details

  • Manufacturer Part Number:

    TAS5414BTDKDRQ1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    36

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e4

  • Length:

    15.9 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    25 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    3.6 mm

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    11 mm

TAS5414BTDKDRQ1 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TAS5414BTDKDRQ1 involves keeping the power traces short and wide, using a solid ground plane, and placing the decoupling capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
  • To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the bottom of the package. TI provides thermal design guidelines in the datasheet and application notes.
  • The recommended input capacitor value depends on the input voltage and current requirements. A general guideline is to use a capacitor with a value of 10-22uF, but TI recommends consulting the datasheet and application notes for specific guidance.
  • To troubleshoot issues, start by checking the power supply voltage, input current, and output voltage. Use an oscilloscope to check for oscillations or noise on the output. Consult the datasheet and application notes for troubleshooting guides and FAQs.
  • Yes, the TAS5414BTDKDRQ1 is qualified for automotive and high-reliability applications. TI provides additional documentation and support for these applications, including AEC-Q100 qualification and PPAP documentation.
