A good PCB layout for the TAS5414CTPHDRQ1 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the decoupling capacitors close to the device. TI provides a recommended PCB layout in the datasheet and application notes.
To optimize the performance of the TAS5414CTPHDRQ1, ensure proper power supply decoupling, use a low-ESR capacitor for the output filter, and optimize the PCB layout for minimal parasitic inductance and capacitance. Additionally, follow the recommended component values and placement in the datasheet.
The TAS5414CTPHDRQ1 has a thermal pad that must be connected to a solid ground plane to dissipate heat. Ensure good thermal conductivity between the device and the PCB, and consider using thermal vias or a heat sink if high power dissipation is expected.
To troubleshoot issues with the TAS5414CTPHDRQ1, start by verifying the power supply voltage, checking for proper decoupling, and ensuring the input and output signals are within the recommended specifications. Use an oscilloscope to check for signal integrity and noise. Consult the datasheet and application notes for troubleshooting guides.
To minimize EMI with the TAS5414CTPHDRQ1, use a shielded enclosure, keep the device and associated components away from antennas and other EMI-sensitive components, and ensure good PCB layout practices such as minimizing loop areas and using a solid ground plane.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5414CTPHDRQ1 Overview

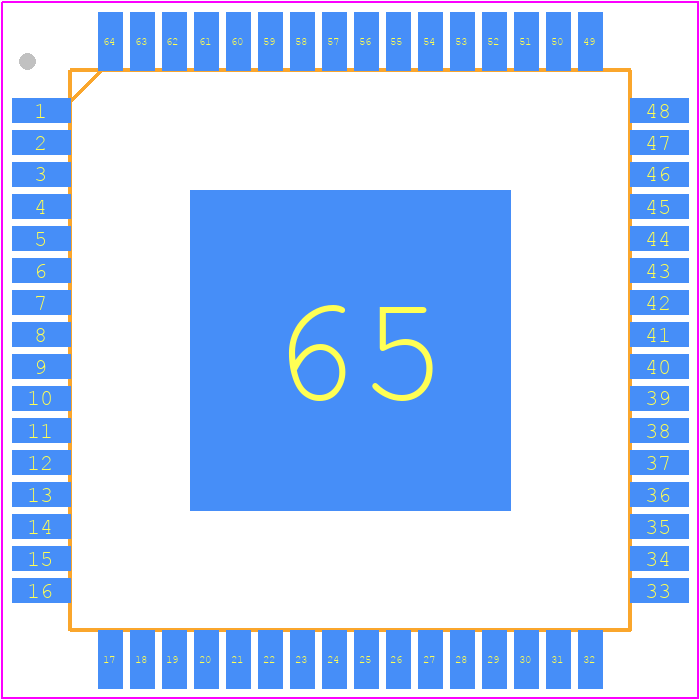

Use the download button to access the TAS5414CTPHDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS54,
or try a keyword search, such as Audio/Video Amplifiers
