SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Screening Level:
AEC-Q100
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
18 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TAS5421QPWPRQ1 Frequently Asked Questions (FAQs)
A good PCB layout for the TAS5421QPWPRQ1 involves keeping the power stage components close to the IC, using a solid ground plane, and minimizing the length of the high-current paths. TI provides a recommended layout in the datasheet and application notes.
To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the package. TI also provides thermal design guidelines in the datasheet and application notes.
When selecting output filter components, consider the inductor value, capacitor value, and ESR to ensure the desired output voltage ripple and stability. TI provides guidance on output filter design in the datasheet and application notes.
To troubleshoot issues, check the PCB layout, component selection, and thermal design. Verify that the input voltage, output voltage, and current are within the recommended operating range. Use oscilloscopes and thermal cameras to identify issues. TI also provides troubleshooting guides in the datasheet and application notes.
The TAS5421QPWPRQ1 is a high-power, high-efficiency device with a specific feature set and pinout. Compare the datasheets of similar devices to determine the best fit for your application, considering factors such as power rating, package type, and feature set.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5421QPWPRQ1 Overview

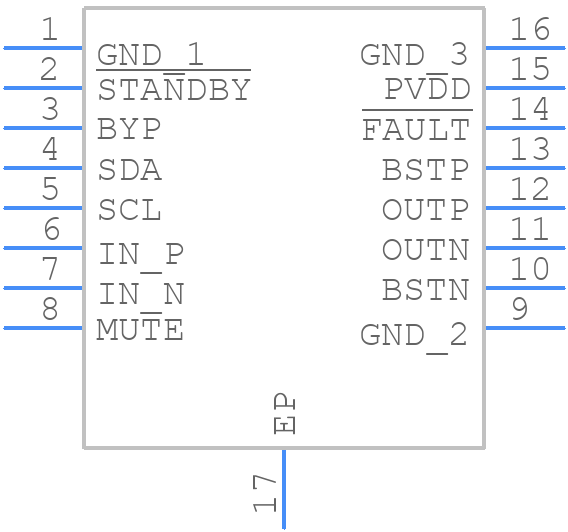

Use the download button to access the TAS5421QPWPRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS54,
or try a keyword search, such as Audio/Video Amplifiers
