TAS5424BTDKERQ1 - Texas Instruments

Description: TAS5414B-Q1, TAS5424B-Q1 Four-Channel Automotive Digital Amplifiers

Download TAS5424BTDKERQ1 Model

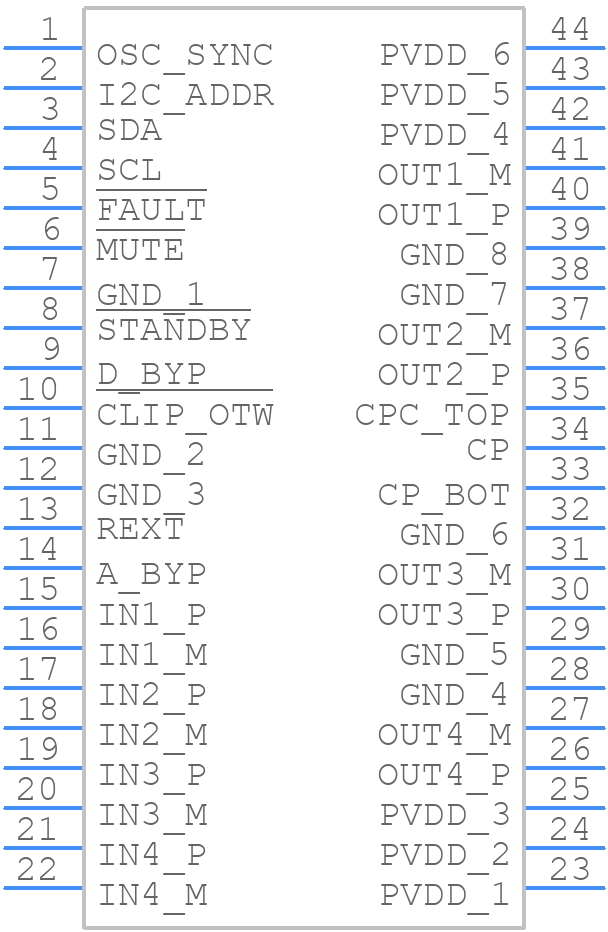

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

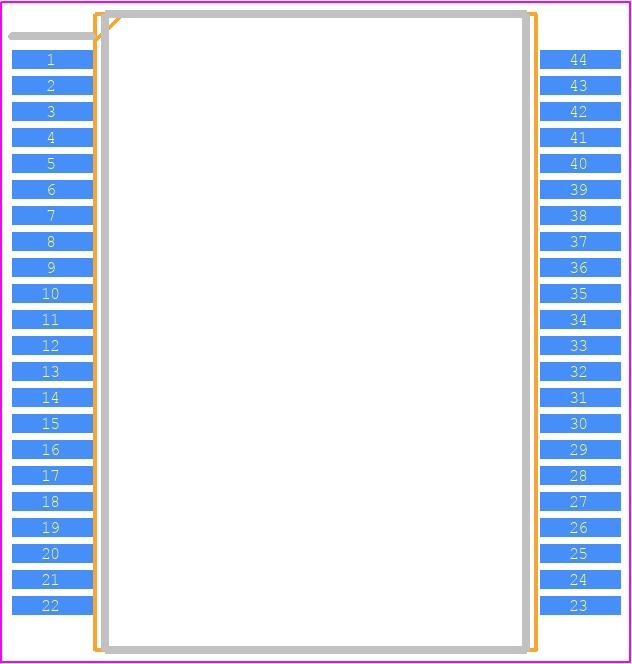

TAS5424BTDKERQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - SKE(R-PDSO-G44)
click to zoom
3D Models
TAS5424BTDKERQ1 - Texas Instruments  - 3D model - Small Outline Packages - SKE(R-PDSO-G44)
click to zoom

TAS5424BTDKERQ1 Details

  • Manufacturer Part Number:

    TAS5424BTDKERQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Package Description:

    GREEN, PLASTIC, HSSOP-44

  • Pin Count:

    44

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    32 dB

  • JESD-30 Code:

    R-PDSO-G44

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    44

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    45 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSOP

  • Package Equivalence Code:

    SSOP44,.55

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Supply Current-Max:

    220 mA

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

TAS5424BTDKERQ1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-current paths short and use a common mode choke to reduce EMI.
  • Use a thermal pad on the bottom of the package, and ensure good airflow around the device. A heat sink can also be used to improve thermal performance.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for the input capacitor, placed as close to the device as possible.
  • Use a voltage supervisor or a power-on reset circuit to monitor the input voltage and reset the device if it falls outside the recommended operating range.
  • A second-order LC filter with a 1uH inductor and a 10uF capacitor is recommended to filter the output voltage and reduce ripple.
