TAS5514BTDKDRQ1 - Texas Instruments

Description: IC AMP CLASS D QUAD 150W 36HSSOP

Download TAS5514BTDKDRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

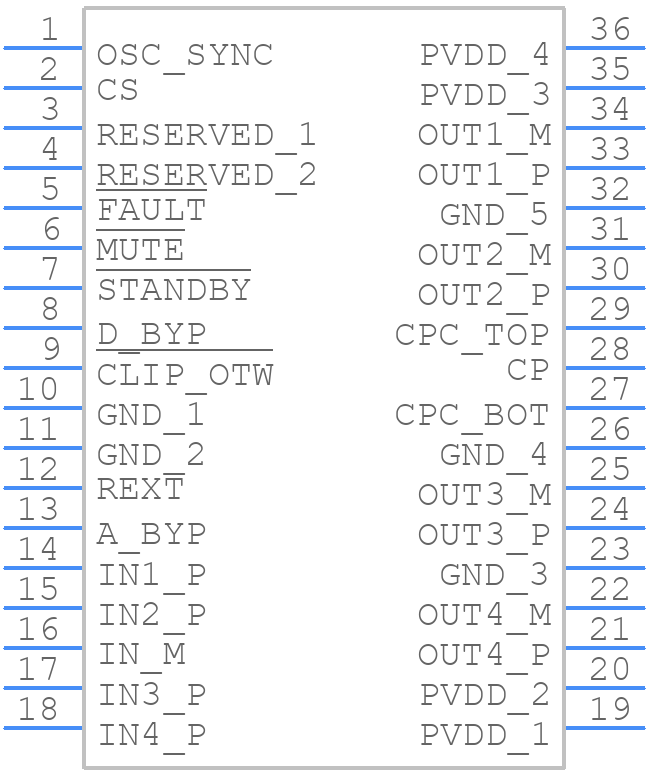

TAS5514BTDKDRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5514BTDKDRQ1 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DKD0036A
click to zoom
3D Models
TAS5514BTDKDRQ1 - Texas Instruments - 3D model - Small Outline Packages - DKD0036A
click to zoom

TAS5514BTDKDRQ1 Details

  • Manufacturer Part Number:

    TAS5514BTDKDRQ1

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    32 dB

  • JESD-30 Code:

    R-PDSO-G36

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    4

  • Number of Terminals:

    36

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Power-Nom:

    150 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HSSOP

  • Package Equivalence Code:

    SSOP36,.56

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    245

  • Qualification Status:

    Not Qualified

  • Screening Level:

    AEC-Q100

  • Supply Current-Max:

    220 mA

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.635 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

TAS5514BTDKDRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow the guidelines in the 'TAS5514BTDKDRQ1 PCB Layout Guidelines' application note (SLAU445) for optimal performance and thermal management.
  • To optimize the TAS5514BTDKDRQ1 for low power consumption, ensure that the device is operated within the recommended voltage range, use the lowest possible clock frequency, and disable any unused features. Additionally, consider using the device's power-saving modes, such as the 'Low Power Mode' or 'Shutdown Mode', when the device is not in use.
  • The maximum operating temperature range for the TAS5514BTDKDRQ1 is -40°C to 85°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • To troubleshoot issues with the TAS5514BTDKDRQ1, start by reviewing the device's datasheet and application notes to ensure that the device is being used within its recommended operating conditions. Use oscilloscopes and logic analyzers to debug the device's signals and identify any issues. Texas Instruments also provides a range of development tools and software that can be used to troubleshoot and debug the device.
  • Yes, the TAS5514BTDKDRQ1 is compatible with lead-free soldering. The device is RoHS-compliant and can be soldered using lead-free soldering techniques.
