TAS5611PHD - Texas Instruments

Description: Audio Amp Speaker 1-CH Mono/2-CH Stereo 250W Class-D 64-Pin HTQFP EP Tray

Download TAS5611PHD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TAS5611PHD - Texas Instruments - PCB symbol
click to zoom

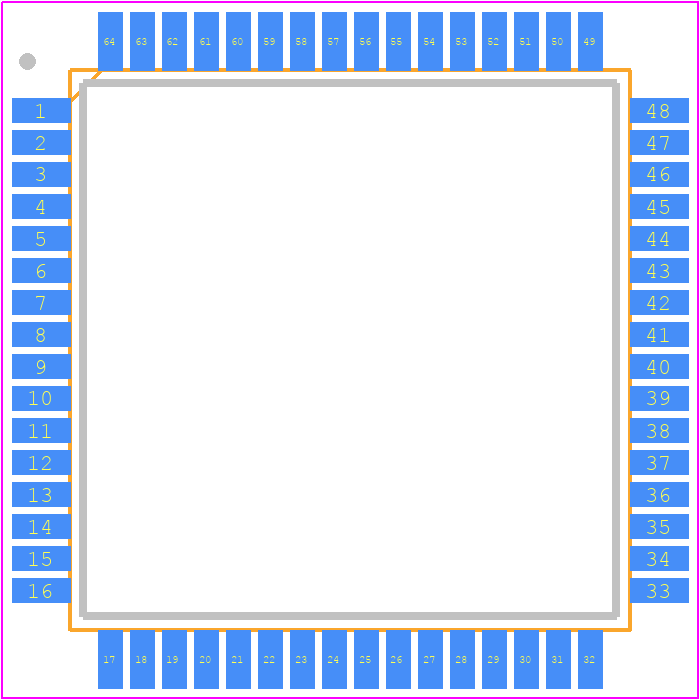

PCB Footprints
TAS5611PHD - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - 64-Pin HTQFP
click to zoom
3D Models
TAS5611PHD - Texas Instruments - 3D model - Quad Flat Packages - 64-Pin HTQFP
click to zoom

TAS5611PHD Details

  • Manufacturer Part Number:

    TAS5611PHD

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Part Package Code:

    QFP

  • Pin Count:

    64

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    3.9

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    130 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTQFP

  • Package Equivalence Code:

    TQFP64,.63SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

TAS5611PHD Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TAS5611PHD evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
  • The output filter design should be optimized based on the specific application requirements, such as output power, frequency, and load impedance. TI provides a filter design tool and application notes to help engineers optimize the output filter design for their specific use case.
  • The maximum junction temperature (Tj) for the TAS5611PHD is 150°C. It's essential to ensure that the device operates within the recommended temperature range to prevent thermal shutdown and ensure reliable operation.
  • Yes, the TAS5611PHD is a Class-D audio amplifier, and it's designed to operate in Class-D mode. However, it's essential to follow the recommended design guidelines and application notes to ensure proper operation and minimize electromagnetic interference (EMI).
  • TI provides a troubleshooting guide and application notes that cover common issues and their solutions. Additionally, engineers can use tools like oscilloscopes and thermal cameras to diagnose and troubleshoot issues with the TAS5611PHD.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAS5611PHD Overview

Use the download button to access the TAS5611PHD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS56, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
