SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
13.2 V
Supply Voltage-Min (Vsup):
10.8 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5612LADDVR Frequently Asked Questions (FAQs)
A good PCB layout is crucial for the amplifier's performance. TI recommends a 4-layer PCB with a solid ground plane, and to keep the input and output traces as short as possible. A good rule of thumb is to keep the input traces within 1 inch of the amplifier's input pins.
The gain setting depends on the specific application and desired output power. TI recommends using the gain setting formula provided in the datasheet, and adjusting it based on the output power and load impedance. It's also important to consider the amplifier's stability and potential oscillations when adjusting the gain.
The TAS5612LADDVR can dissipate up to 15W of power, so proper thermal management is crucial. TI recommends using a heat sink with a thermal resistance of 1°C/W or lower, and applying a thermal interface material (TIM) to the heat sink. Additionally, ensure good airflow around the amplifier and avoid blocking the airflow.
To protect the amplifier from overvoltage, use a voltage regulator or a voltage limiter to ensure the input voltage stays within the recommended range. For overcurrent protection, use a current sense resistor and a comparator to detect excessive current, and shut down the amplifier if necessary. Additionally, consider using a fuse or a PTC resettable fuse to protect against excessive current.
TI recommends using a low-pass filter (LPF) at the input to filter out high-frequency noise and prevent oscillations. A simple RC filter with a cutoff frequency of around 100 kHz is sufficient. For the output, use a low-pass filter or a ferrite bead to filter out high-frequency noise and prevent EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5612LADDVR Overview

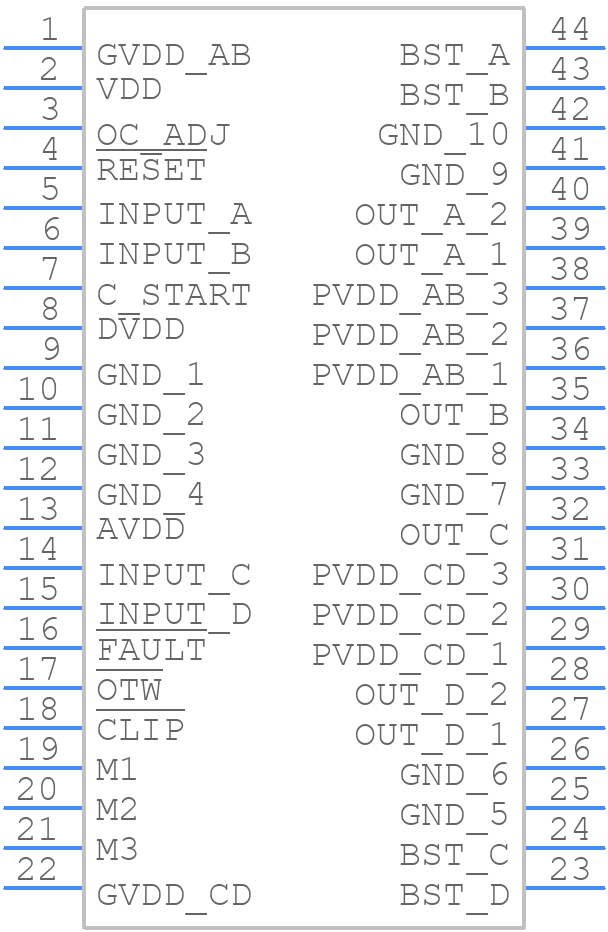

Use the download button to access the TAS5612LADDVR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS56,
or try a keyword search, such as Audio/Video Amplifiers
