Texas Instruments provides a recommended PCB layout in the TAS5614APHD evaluation module documentation, which includes guidelines for component placement, thermal management, and signal routing to ensure optimal performance and minimize electromagnetic interference (EMI).
The output filter design depends on the specific application requirements, such as output power, frequency, and load impedance. Texas Instruments provides a filter design tool and application notes that can help engineers optimize the output filter design for their specific use case.
The maximum junction temperature (Tj) for the TAS5614APHD is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
The TAS5614APHD has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, additional external protection circuits may be required depending on the specific application requirements. Engineers should consult the datasheet and application notes for guidance on implementing external protection circuits.
The TAS5614APHD is a high-power device that requires effective thermal management to ensure reliable operation. Engineers should use a combination of thermal design techniques, such as heat sinks, thermal interfaces, and airflow management, to keep the junction temperature within the recommended range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TAS5614APHD Overview

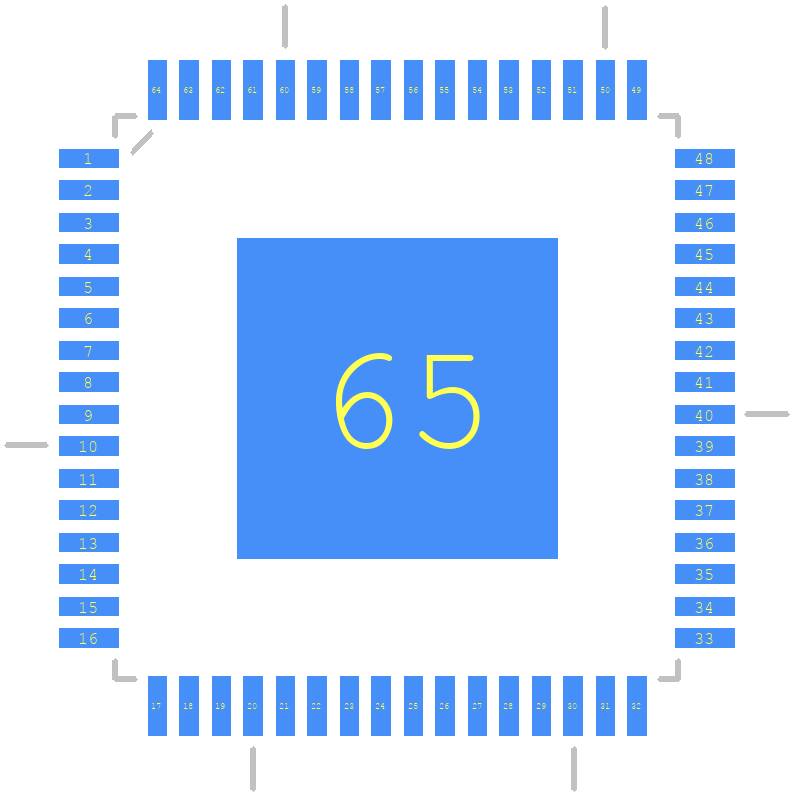

Use the download button to access the TAS5614APHD schematic symbol, PCB footprint, and 3D model.
