Texas Instruments provides a recommended PCB layout in the TAS5615PHDR evaluation module documentation, which includes guidelines for component placement, thermal management, and signal routing to ensure optimal performance and minimize electromagnetic interference (EMI).
The output filter design depends on the specific application requirements, such as output power, frequency, and load impedance. TI provides a filter design tool and application notes that can help engineers optimize the output filter design for their specific use case.
The maximum junction temperature (Tj) for the TAS5615PHDR is 150°C. However, it's recommended to keep the junction temperature below 125°C for optimal reliability and performance.
Yes, the TAS5615PHDR is a Class-D audio amplifier, and it's designed to operate in Class-D mode. However, it's essential to follow the recommended design guidelines and application notes to ensure proper operation and minimize electromagnetic interference (EMI).
The TAS5615PHDR has built-in overvoltage protection (OVP) and undervoltage protection (UVP) circuits. However, it's still recommended to add external protection circuits, such as voltage regulators and TVS diodes, to ensure the device operates within the recommended voltage range.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TAS5615PHDR Overview

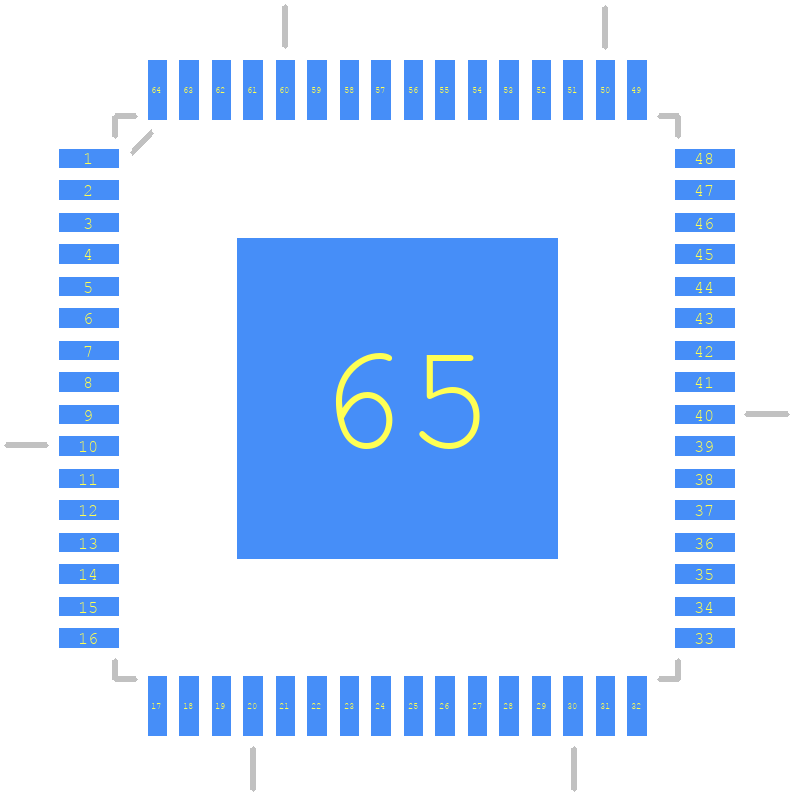

Use the download button to access the TAS5615PHDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS56,
or try a keyword search, such as Audio/Video Amplifiers
