SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
10.8 V
Supply Voltage-Min (Vsup):
13.2 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5622ADDV Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5622ADDV evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5622ADDV for low noise and distortion, ensure proper power supply decoupling, use a low-ESR capacitor for the PVCC pin, and minimize the length of the analog input traces. Additionally, use a differential input configuration and ensure the analog input signals are properly terminated.
The TAS5622ADDV can handle a maximum power of 20W per channel into a 4Ω load, but this can be limited by the thermal design of the system. Ensure proper thermal management, such as using a heat sink, to prevent overheating and ensure reliable operation.
Yes, the TAS5622ADDV can be used in a bridged configuration to increase the output power. However, this requires careful consideration of the power supply, output stage, and thermal management to ensure reliable operation and prevent overheating.
To troubleshoot common issues with the TAS5622ADDV, start by verifying the power supply and input signal integrity. Check for proper decoupling, termination, and routing of the analog input signals. Use an oscilloscope to measure the output signal and identify any signs of oscillation or distortion. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5622ADDV Overview

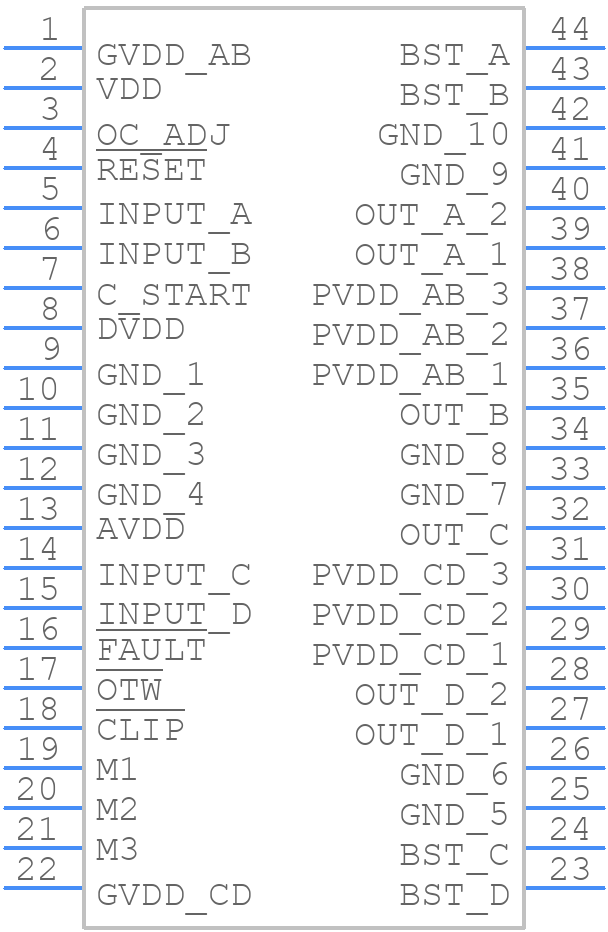

Use the download button to access the TAS5622ADDV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS56,
or try a keyword search, such as Audio/Video Amplifiers
