SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
10.8 V
Supply Voltage-Min (Vsup):
13.2 V
Surface Mount:
YES
Temperature Grade:
COMMERCIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.635 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5624ADDVR Frequently Asked Questions (FAQs)
A good PCB layout for the TAS5624ADDVR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. TI provides a recommended PCB layout in the datasheet and application notes.
To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the bottom of the package. TI provides thermal design guidelines in the datasheet and application notes.
The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper device initialization and prevents latch-up.
TI provides a troubleshooting guide in the datasheet and application notes. Common issues include incorrect power-up sequence, inadequate power supply decoupling, and incorrect clock signal configuration. Use an oscilloscope to verify signal integrity and check for errors in the device's status registers.
To ensure EMI and EMC compliance, use a shielded enclosure, keep the device away from antennas and other EMI-sensitive components, and use EMI filters on the power supply and signal lines. TI provides EMI and EMC guidelines in the datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5624ADDVR Overview

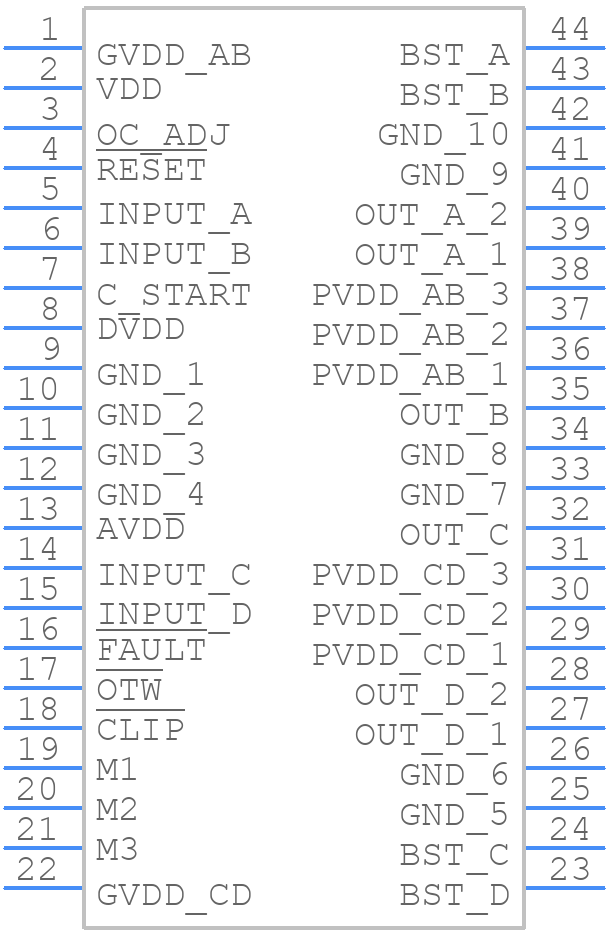

Use the download button to access the TAS5624ADDVR schematic symbol, PCB footprint, and 3D model.
