TAS5630BPHD - Texas Instruments

Description: Texas Instruments TAS5630BPHD 4-Channel Audio Amplifier, Class-D Mono/Stereo, 64-Pin HTQFP

Download TAS5630BPHD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
TAS5630BPHD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

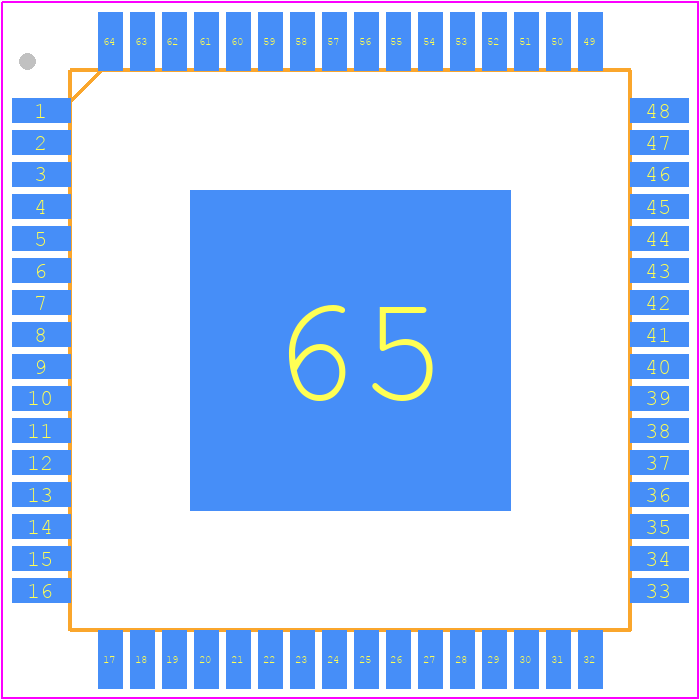

TAS5630BPHD - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHD0064B
click to zoom
3D Models
TAS5630BPHD - Texas Instruments - 3D model - Quad Flat Packages - PHD0064B
click to zoom

TAS5630BPHD Details

  • Manufacturer Part Number:

    TAS5630BPHD

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    64

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • Gain:

    23 dB

  • JESD-30 Code:

    S-PQFP-G64

  • JESD-609 Code:

    e4

  • Length:

    14 mm

  • Moisture Sensitivity Level:

    4

  • Noise Figure-Nom:

    100 dB

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    64

  • Operating Temperature-Max:

    70 °C

  • Output Power-Nom:

    300 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTQFP

  • Package Equivalence Code:

    TQFP64,.63SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    13.2 V

  • Supply Voltage-Min (Vsup):

    10.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    14 mm

TAS5630BPHD Frequently Asked Questions (FAQs)

  • A good PCB layout for the TAS5630BPHD involves keeping the power supply and output stages separate, using a star-ground configuration, and minimizing the length of the traces carrying high-frequency signals. TI provides a recommended PCB layout in the datasheet and application notes.
  • To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the package. TI also recommends using thermal interface material (TIM) to improve heat transfer between the device and heat sink.
  • The recommended input clock frequency for the TAS5630BPHD is between 256 kHz and 512 kHz. However, the device can operate with clock frequencies up to 1 MHz, but with reduced performance.
  • The TAS5630BPHD can be configured for mono or stereo operation by setting the MODE pin high or low, respectively. In mono mode, the device outputs a single channel, while in stereo mode, it outputs two channels.
  • The maximum power supply voltage for the TAS5630BPHD is 15.5 V. Operating the device above this voltage can cause damage or reduce its lifespan.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAS5630BPHD Overview

Use the download button to access the TAS5630BPHD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS56, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
