FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
80 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
TAS5704PAP Frequently Asked Questions (FAQs)
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
The TAS5704PAP can be configured for mono or stereo operation by setting the MONO/STEREO pin high or low, respectively. In mono mode, the device will output the same audio signal on both channels, while in stereo mode, it will output separate left and right channel audio signals.
The TAS5704PAP can deliver up to 20W of power per channel into a 4Ω load, making it suitable for driving small to medium-sized speakers or headphones.
The gain of the TAS5704PAP can be adjusted by setting the GAIN pin to a specific voltage level. The gain can be set to one of four levels: 0dB, 3dB, 6dB, or 9dB, depending on the application requirements.
The FLT pin is a fault detection pin that indicates when the device has detected an over-temperature, over-current, or under-voltage condition. When a fault is detected, the FLT pin will go low, allowing the system to take corrective action.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5704PAP Overview

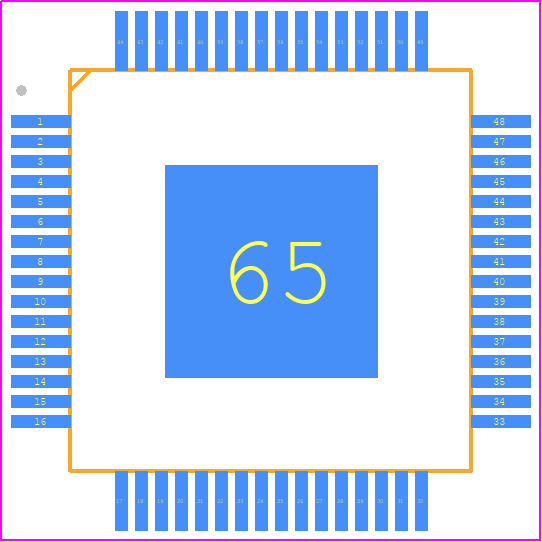

Use the download button to access the TAS5704PAP schematic symbol, PCB footprint, and 3D model.
