FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
83 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
TAS5705PAPR Frequently Asked Questions (FAQs)
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal (MCLK). This ensures proper initialization of the device.
The TAS5705PAPR can be configured for mono or stereo audio output using the MODE pin. For mono output, tie the MODE pin to GND, and for stereo output, tie it to DVDD. Additionally, the audio data format can be set using the I2S interface.
The TAS5705PAPR is capable of delivering up to 20W of power per channel into a 4Ω load. However, the actual power handling capability may vary depending on the application, PCB design, and thermal management.
The TAS5705PAPR has a built-in thermal protection circuit that shuts down the device when the junction temperature exceeds 150°C. The TSD pin can be used to monitor the thermal shutdown status. Additionally, an external thermal sensor can be connected to the THERM pin to implement custom thermal protection schemes.
The recommended layout and routing for the TAS5705PAPR involves keeping the analog and digital power supply traces separate, using a solid ground plane, and minimizing the length of the clock signal trace. Additionally, it is recommended to place the device near the audio output connectors to minimize noise and EMI.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5705PAPR Overview

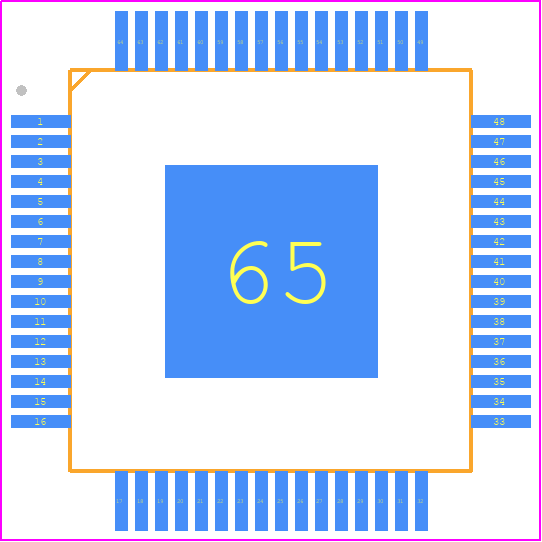

Use the download button to access the TAS5705PAPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
