FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
80 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
TAS5706APAP Frequently Asked Questions (FAQs)
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
The TAS5706APAP can be configured for mono or stereo operation by setting the MONO/STEREO pin high or low, respectively. In mono mode, the device will output the same audio signal on both channels, while in stereo mode, it will output separate left and right channel audio signals.
The maximum allowed clock jitter for the TAS5706APAP is 500 ps. Exceeding this limit may result in audio artifacts or errors.
To optimize the TAS5706APAP for low power consumption, ensure that the device is operated at the lowest possible clock frequency, disable any unused features, and use the power-down mode when not in use. Additionally, consider using a lower voltage power supply and optimizing the output stage for minimum power consumption.
The recommended layout and routing for the TAS5706APAP involves keeping the analog and digital power supplies separate, using a solid ground plane, and minimizing the length of the clock signal traces. Additionally, ensure that the output stage is properly decoupled and that the device is placed away from noise sources.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TAS5706APAP Overview

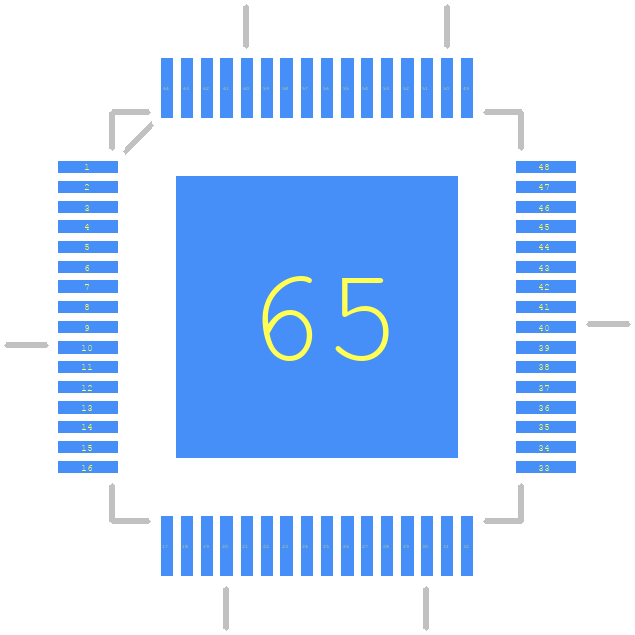

Use the download button to access the TAS5706APAP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
