TAS5708PHPR - Texas Instruments

Description: 20-W Stereo Closed-Loop I2S Audio Power Amplifier with Speaker EQ and DRC

Download TAS5708PHPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

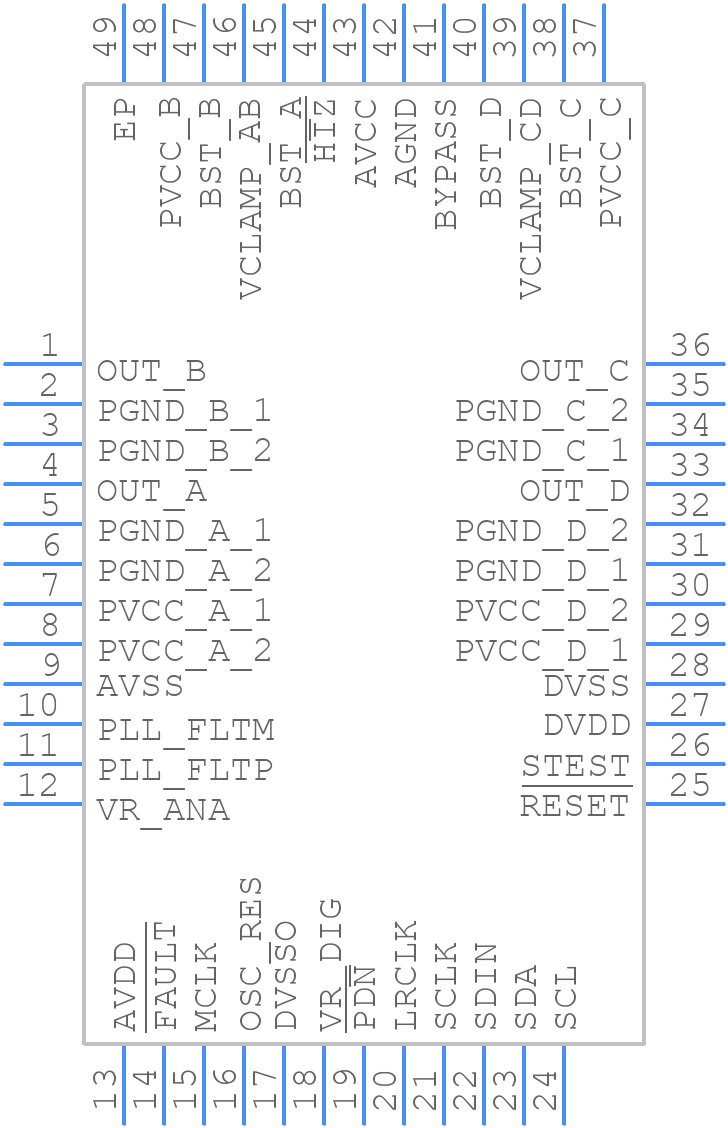

TAS5708PHPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5708PHPR - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - PHP0048G
click to zoom
3D Models
TAS5708PHPR - Texas Instruments - 3D model - Quad Flat Packages - PHP0048G
click to zoom

TAS5708PHPR Details

  • Manufacturer Part Number:

    TAS5708PHPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    48

  • Country Of Origin:

    Philippines, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRES 3.3V DIGITAL SUPPLY

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • JESD-30 Code:

    S-PQFP-G48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Output Power-Nom:

    20.2 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTFQFP

  • Package Equivalence Code:

    TQFP48,.35SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    77 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7 mm

TAS5708PHPR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
  • To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the package. Additionally, minimize the power dissipation by optimizing the system design and reducing the current consumption.
  • The maximum allowed clock jitter for the TAS5708PHPR is 100 ps RMS. Exceeding this value may affect the device's performance and audio quality.
  • Yes, the TAS5708PHPR can be used with different clock frequencies, but the device's performance and audio quality may be affected. It is recommended to consult the datasheet and application notes for specific guidance on clock frequency selection.
  • To troubleshoot audio artifacts or distortion issues, check the power supply voltage, clock frequency, and signal integrity. Ensure that the device is properly configured and that the analog and digital grounds are properly separated. Also, verify that the input signals are within the specified range and that the device is not overheating.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

TAS5708PHPR Overview

Use the download button to access the TAS5708PHPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
