- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TAS5710PHP
- Part Number TAS5710PHP
- Manufacturer Texas Instruments
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFP50P900X900X120-49N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
TAS5710PHP Details
-
Manufacturer Part Number:
TAS5710PHP
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFP
-
Pin Count:
48
-
Country Of Origin:
Philippines, Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
TAS5710PHP Frequently Asked Questions (FAQs)
-
The recommended power-up sequence is to apply PVDD first, followed by AVDD, and then DVDD. This ensures that the internal voltage regulators are powered up in the correct order.
-
To optimize the TAS5710PHP for low power consumption, use the lowest possible clock frequency, disable unused features, and adjust the bias current settings. Additionally, consider using the device's power-saving modes, such as the idle mode or shutdown mode.
-
The maximum allowed voltage on the analog input pins is AVDD + 0.3V. Exceeding this voltage can cause damage to the device.
-
To troubleshoot audio noise or distortion issues, check the power supply voltage, clock frequency, and analog input signal quality. Ensure that the device is properly grounded and that there is no electromagnetic interference (EMI) affecting the device. Also, verify that the device is configured correctly and that the audio signal is within the recommended specifications.
-
Yes, the TAS5710PHP can be used with a separate ADC. However, the ADC must be able to handle the analog input signal from the TAS5710PHP, and the digital output from the ADC must be compatible with the TAS5710PHP's digital input requirements.
Trust Checks
System Verified
TAS5710PHP Overview

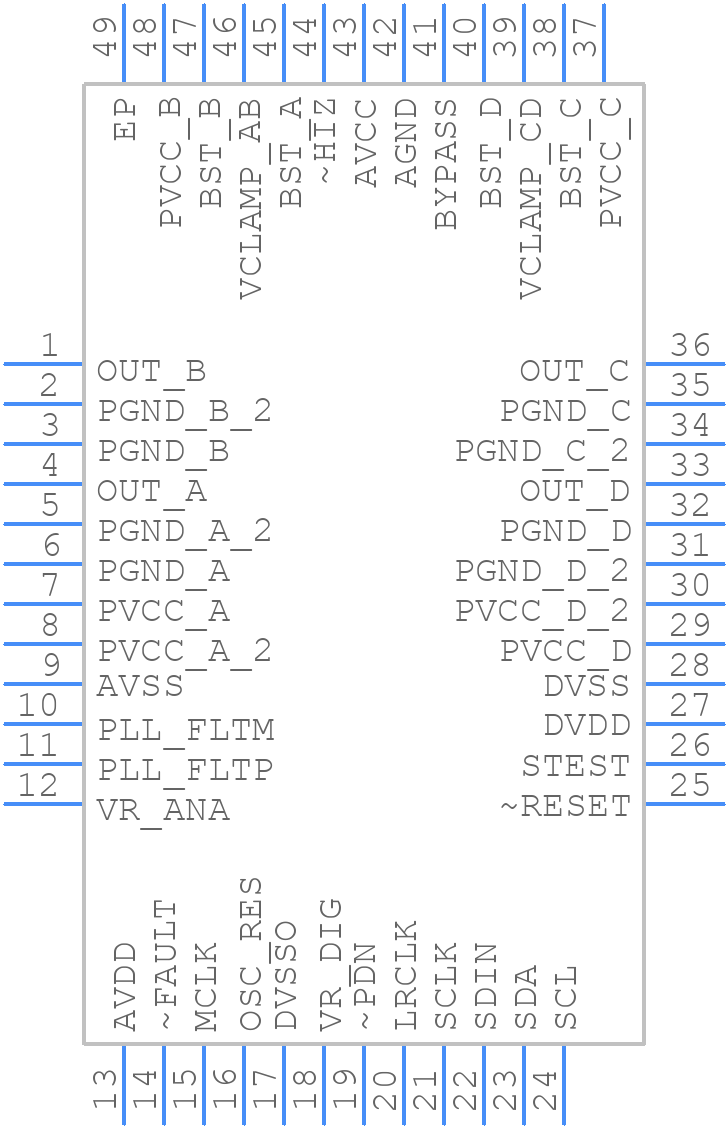

Use the download button to access the TAS5710PHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
