FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
80 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
10 mm
TAS5716PAP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5716PAP evaluation module documentation, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5716PAP for low THD+N, ensure proper power supply decoupling, use a low-ESR capacitor for the PVCC pin, and optimize the output filter components. Additionally, adjust the gain setting and input impedance to minimize distortion, and consider using a higher-quality input signal.
The TAS5716PAP can handle up to 20W of output power per channel, but this depends on the specific application, PCB design, and thermal management. It's essential to follow the recommended thermal design and heat sinking guidelines to ensure reliable operation.
The TAS5716PAP has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. This feature will limit the output current in case of a short circuit, protecting the device from damage.
The recommended clock frequency for the TAS5716PAP is between 256 kHz and 512 kHz, depending on the specific application and desired performance. A higher clock frequency can improve noise performance, but may also increase power consumption.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TAS5716PAP Overview

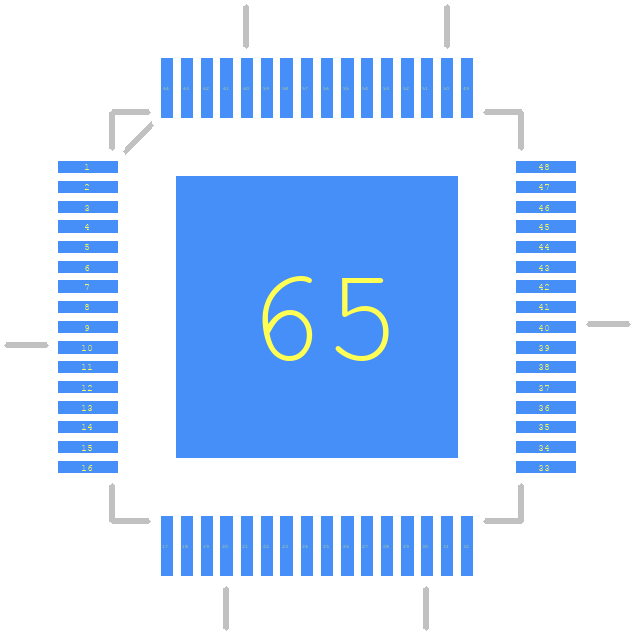

Use the download button to access the TAS5716PAP schematic symbol, PCB footprint, and 3D model.
