- Part Number TAS5717PHP
- Manufacturer Texas Instruments
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Other
- Footprint Name Other - QFP50P900X900X120-49N
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
TAS5717PHP Details
-
Manufacturer Part Number:
TAS5717PHP
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFP
-
Pin Count:
48
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
TAS5717PHP Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the TAS5717PHP evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
-
To optimize the TAS5717PHP for low THD+N, ensure proper power supply decoupling, use a low-ESR capacitor for the PVCC pin, and optimize the output filter components (e.g., L-C-R values) for the specific application. Additionally, adjust the gain setting and input impedance to minimize distortion.
-
The TAS5717PHP can handle up to 20W of output power per channel, but this depends on the specific application, PCB layout, and thermal management. It's essential to follow the thermal design guidelines and ensure proper heat sinking to prevent overheating.
-
Yes, the TAS5717PHP can be used in a bridged configuration to increase the output power and improve the signal-to-noise ratio (SNR). However, this requires careful consideration of the output stage design, including the output filter components and the load impedance.
-
To troubleshoot common issues with the TAS5717PHP, start by checking the power supply voltage, output stage design, and PCB layout for any errors or omissions. Use an oscilloscope to measure the output signal and identify any signs of oscillation or distortion. Consult the datasheet and application notes for guidance on troubleshooting and optimization techniques.
Trust Checks
System Verified
TAS5717PHP Overview

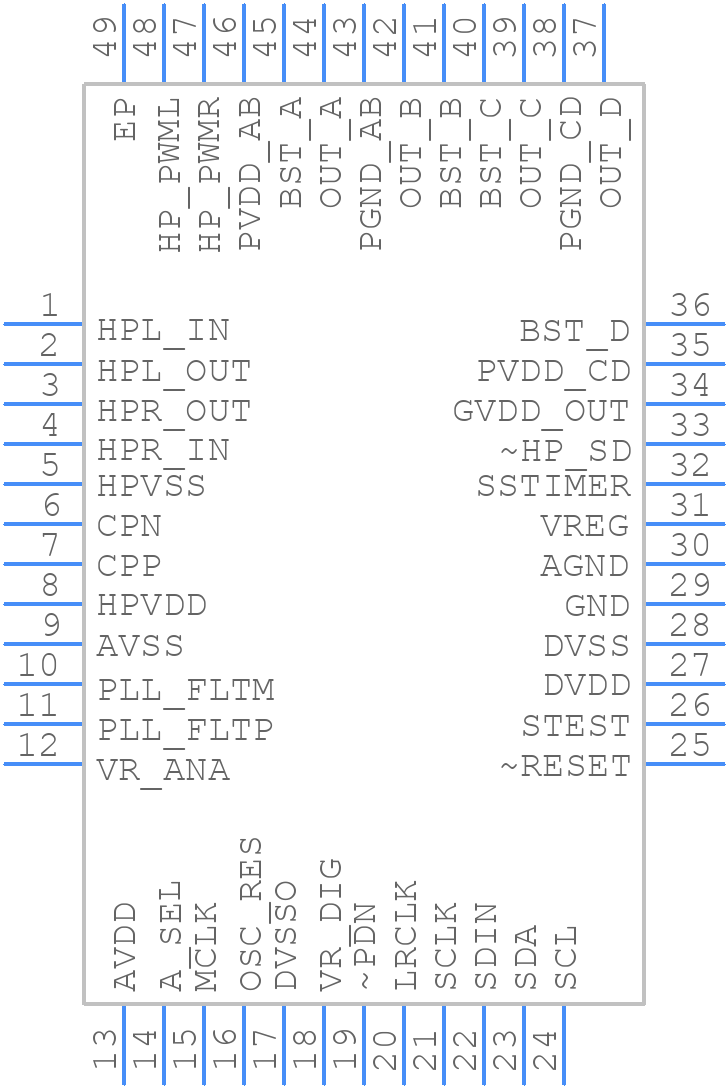

Use the download button to access the TAS5717PHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
