Texas Instruments provides a recommended PCB layout in the TAS5720LRSMR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
To optimize the TAS5720LRSMR for low noise and EMI, use a multi-layer PCB with a solid ground plane, keep analog and digital signals separate, use shielded cables, and add EMI filters and ferrite beads as needed. Additionally, ensure proper decoupling and bypassing of power supplies, and use a low-noise voltage regulator.
The maximum power dissipation of the TAS5720LRSMR is dependent on the operating conditions, such as supply voltage, output power, and ambient temperature. However, as a general guideline, the device can dissipate up to 3.5W of power. It is essential to perform thermal analysis and design a suitable heat sink to ensure the device operates within its recommended temperature range.
Yes, the TAS5720LRSMR is a Class-D audio amplifier, and it is suitable for use in Class-D amplifier designs. The device features a high-efficiency Class-D architecture, which makes it an ideal choice for high-power audio applications.
The TAS5720LRSMR output power can be configured by adjusting the gain setting resistors (Rg) and the output filter components. The device also features a programmable gain amplifier (PGA) that allows for digital gain control. Refer to the datasheet and application notes for more information on configuring the output power level.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5720LRSMR Overview

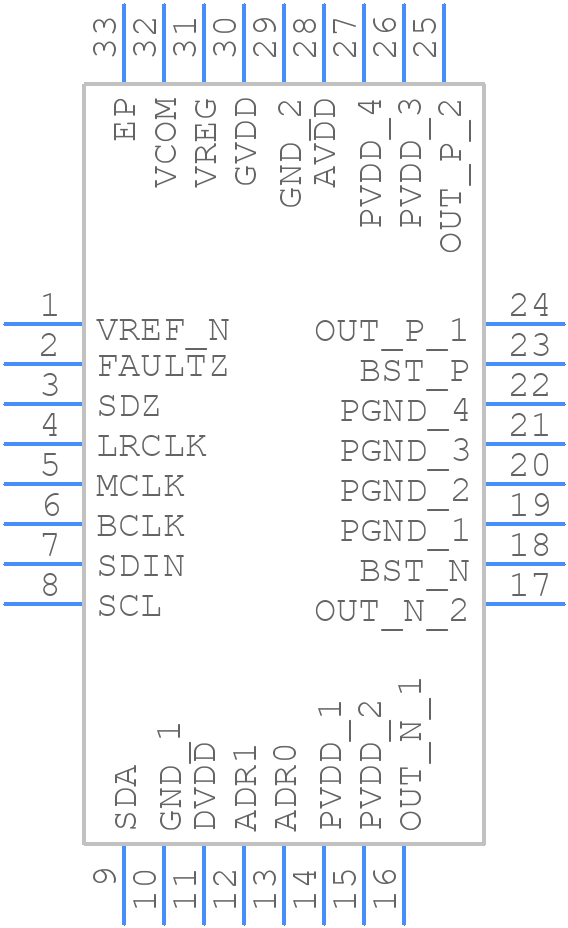

Use the download button to access the TAS5720LRSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
