Texas Instruments provides a recommended PCB layout in the TAS5720MRSMR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
To optimize the TAS5720MRSMR for low noise and EMI, follow the recommended PCB layout, use a low-ESR capacitor for the power supply, and ensure proper grounding and shielding. Additionally, use a common-mode choke and ferrite beads to filter out high-frequency noise and EMI.
The TAS5720MRSMR can handle up to 20W of output power per channel, but the actual power handling capability depends on the application, PCB layout, and thermal management. It's essential to follow the recommended thermal design and ensure proper heat sinking to prevent overheating.
The TAS5720MRSMR can be configured for different audio formats and sampling rates using the I2C interface. The device supports various audio formats, including I2S, PCM, and DSP, and can operate at sampling rates up to 192 kHz. Refer to the datasheet and application notes for specific configuration details.
The recommended operating temperature range for the TAS5720MRSMR is -40°C to 85°C. However, the device can operate up to 105°C with derating. It's essential to ensure proper thermal management and heat sinking to prevent overheating and ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5720MRSMR Overview

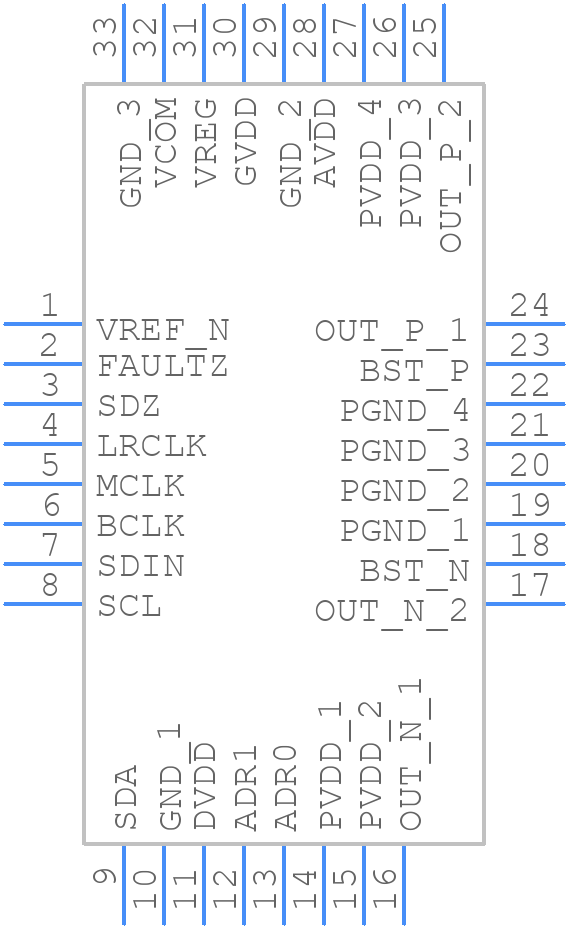

Use the download button to access the TAS5720MRSMR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
