SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
70 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5721DCAR Frequently Asked Questions (FAQs)
A good PCB layout for the TAS5721DCAR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. TI provides a recommended PCB layout in the datasheet and application notes.
To optimize the TAS5721DCAR for low THD+N, ensure proper power supply decoupling, use a low-ESR capacitor for the PVCC pin, and optimize the output filter components. Additionally, adjust the gain setting and input impedance to minimize distortion.
The TAS5721DCAR can handle up to 20W of output power per channel. However, the actual power handling capability depends on the application, PCB design, and thermal management. Consult the datasheet and application notes for more information.
To troubleshoot common issues with the TAS5721DCAR, check the power supply voltage, decoupling, and PCB layout. Ensure proper termination and impedance matching. Use an oscilloscope to analyze the output waveform and identify distortion or oscillation. Consult the datasheet and application notes for troubleshooting guides.
Yes, the TAS5721DCAR can be used in a bridged configuration to increase the output power. However, this requires careful design and layout considerations to ensure proper operation and minimize distortion. Consult the datasheet and application notes for more information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5721DCAR Overview

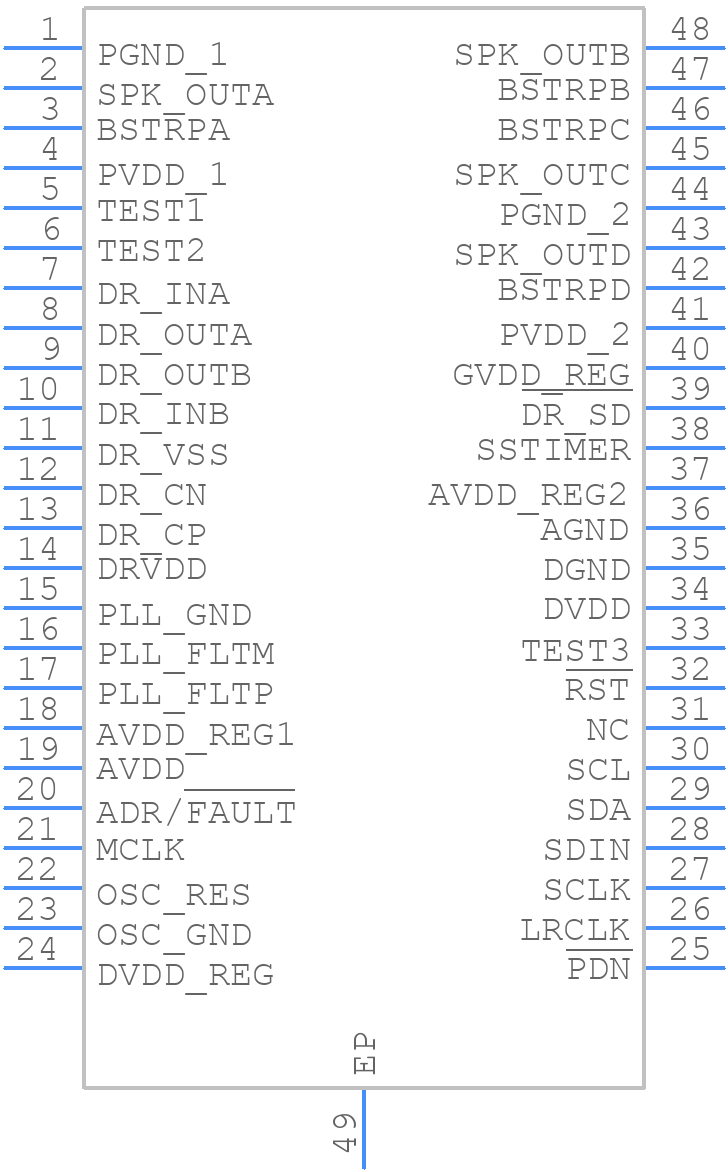

Use the download button to access the TAS5721DCAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
