Texas Instruments provides a recommended PCB layout in the TAS5722LRSMT evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5722LRSMT for low noise and distortion, ensure proper power supply decoupling, use a low-ESR capacitor for the PVCC pin, and minimize the length of the analog input traces. Additionally, use a differential input configuration and ensure the analog input signals are properly terminated.
The maximum power dissipation of the TAS5722LRSMT is dependent on the operating conditions, such as supply voltage, output power, and ambient temperature. Refer to the thermal design considerations section in the datasheet for more information. As a general guideline, ensure the device junction temperature (TJ) does not exceed 150°C.
Yes, the TAS5722LRSMT is a Class-D audio amplifier, and it's suitable for Class-D amplifier designs. However, ensure you follow the recommended operating conditions, such as supply voltage, output power, and switching frequency, to achieve optimal performance and efficiency.
Use a voltage supervisor or a power-on reset (POR) circuit to monitor the supply voltage and ensure it remains within the recommended operating range. Additionally, consider using overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage to the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5722LRSMT Overview

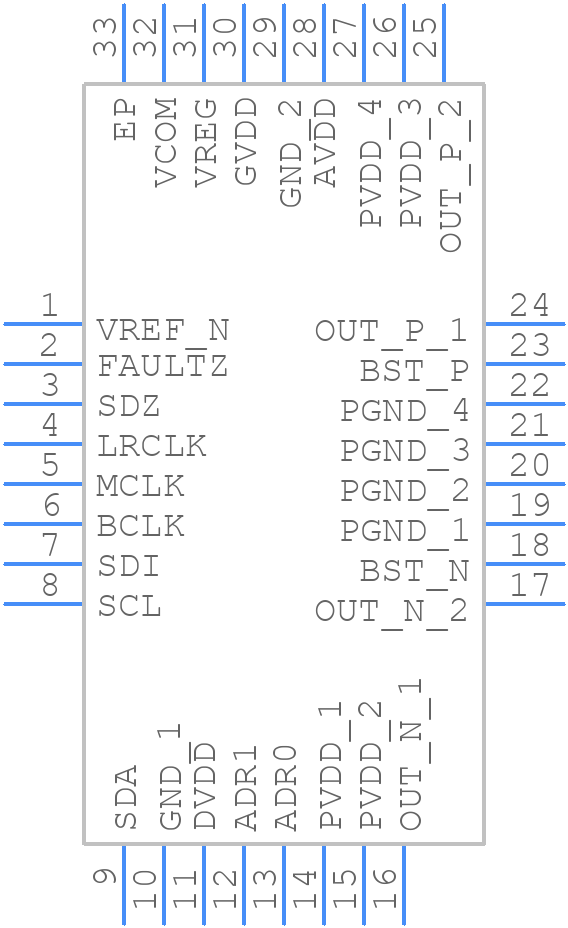

Use the download button to access the TAS5722LRSMT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
