- Part Number TAS5727PHP
- Manufacturer Texas Instruments
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - PHP(S-PQFP- G48)
- Released Date Jan 12, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
TAS5727PHP Details
-
Manufacturer Part Number:
TAS5727PHP
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFP
-
Pin Count:
48
-
Country Of Origin:
Taiwan
-
ECCN Code:
EAR99
-
HTS Code:
8542.33.00.01
-
Manufacturer:
Texas Instruments
TAS5727PHP Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the TAS5727PHP evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
-
To optimize the TAS5727PHP for low noise and distortion, ensure that the power supply is well-regulated and decoupled, use a low-ESR capacitor for the PVCC pin, and minimize the length of the analog input traces. Additionally, use a differential input configuration and ensure that the input signals are properly terminated.
-
The TAS5727PHP is capable of delivering up to 20W of continuous power per channel into a 4Ω load. However, the maximum power handling capability depends on the thermal design and the ambient temperature. It's essential to ensure proper thermal management to prevent overheating and maintain reliable operation.
-
The TAS5727PHP supports various audio formats, including I2S, TDM, and PWM. To configure the device for a specific audio format, refer to the datasheet and the application notes provided by Texas Instruments. The configuration typically involves setting the correct clock frequencies, data formats, and pin configurations using the device's control registers.
-
The TAS5727PHP is a high-power device that requires proper thermal management to prevent overheating. Ensure that the device is mounted on a heat sink with a thermal resistance of less than 10°C/W, and that the ambient temperature is within the recommended operating range. Additionally, use thermal vias and thermal pads to improve heat dissipation.
Trust Checks
System Verified
TAS5727PHP Overview

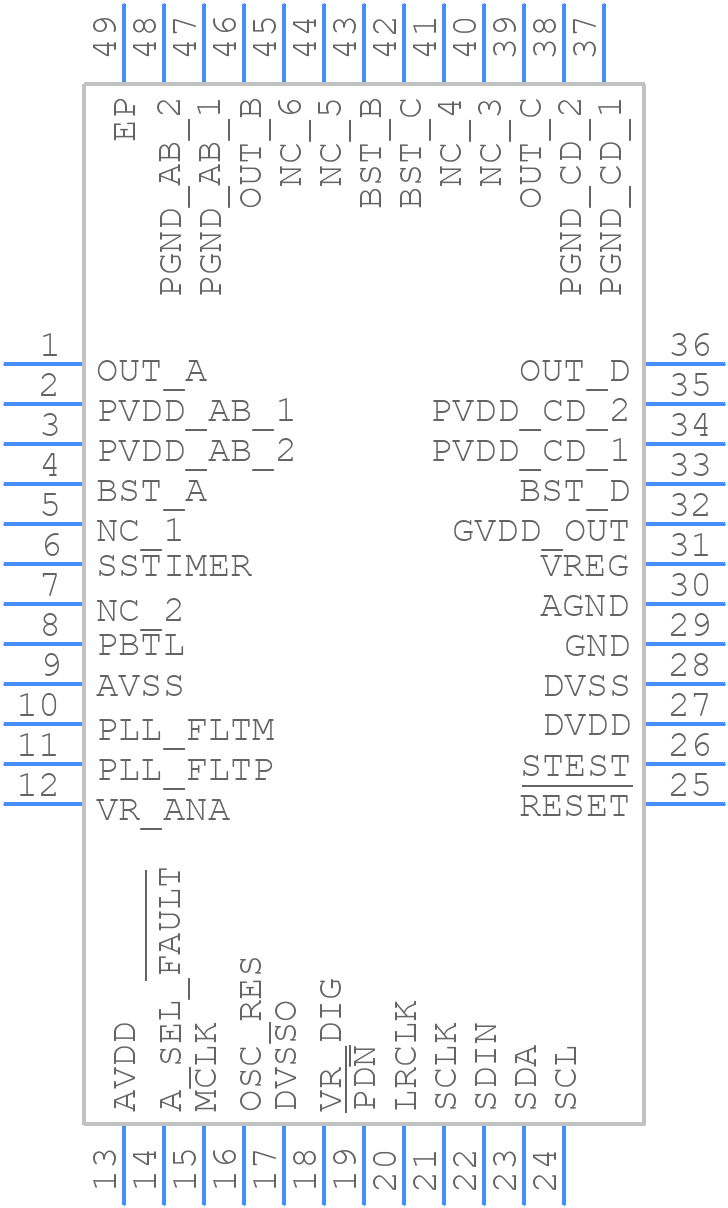

Use the download button to access the TAS5727PHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
