SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5729MDDCA Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5729MDDCA evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5729MDDCA for low noise and distortion, ensure proper power supply decoupling, use a low-noise power supply, and minimize the length of the analog signal traces. Additionally, use a high-quality output filter and ensure the device is operated within its recommended operating conditions.
The maximum power handling capability of the TAS5729MDDCA depends on the output configuration and the thermal management of the system. According to the datasheet, the device can handle up to 20W of output power per channel, but this can be increased with proper heat sinking and thermal design.
The TAS5729MDDCA has a built-in overcurrent protection feature that can be enabled through the I2C interface. The device can be configured to limit the output current to a specific value, and an overcurrent event can be detected through the I2C interface or the dedicated OCP pin.
The TAS5729MDDCA uses a standard I2C communication protocol, with a maximum clock frequency of 400 kHz. The device supports both 7-bit and 10-bit I2C addresses, and the I2C interface can be used to configure the device, monitor its status, and control its operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5729MDDCA Overview

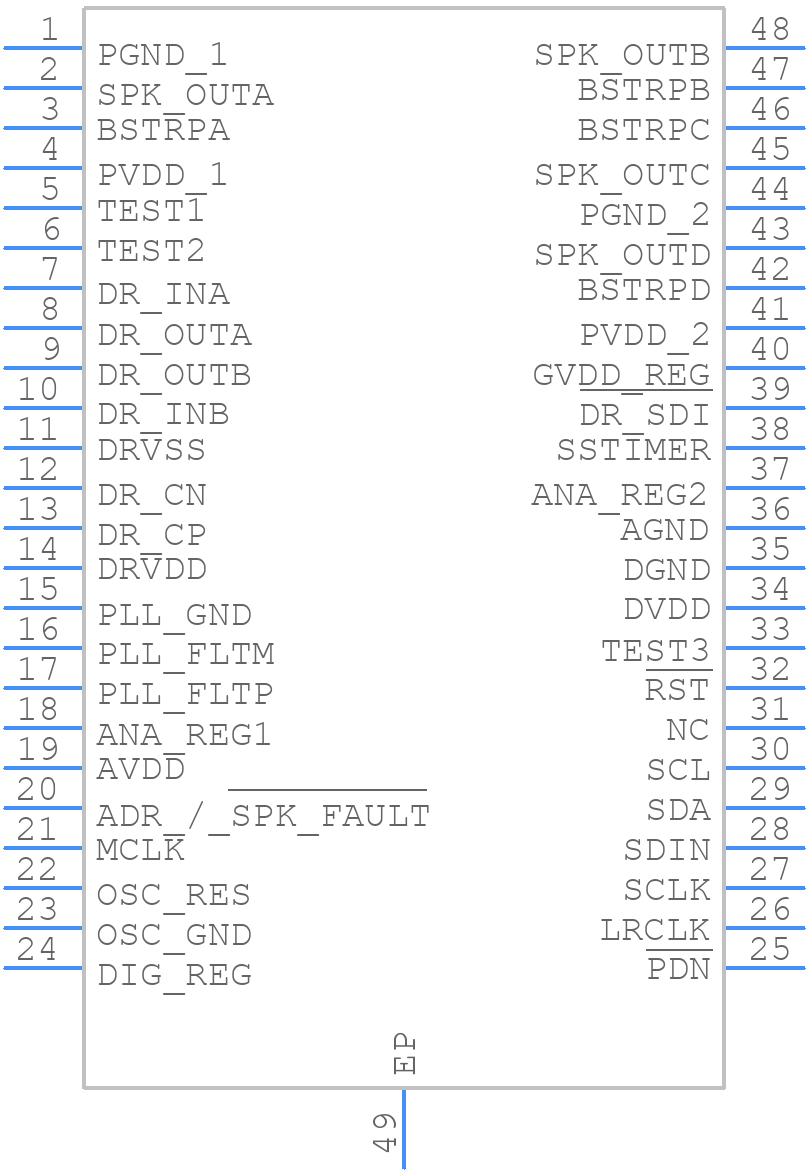

Use the download button to access the TAS5729MDDCA schematic symbol, PCB footprint, and 3D model.
