SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5729MDDCAR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5729MDDCAR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5729MDDCAR for low noise and distortion, ensure proper power supply decoupling, use a low-ESR capacitor for the PVCC pin, and minimize the length of the analog input traces. Additionally, use a differential input configuration and ensure the analog input signals are properly terminated.
The TAS5729MDDCAR can handle a maximum power of 20W per channel into a 4-ohm load. However, the actual power handling capability depends on the application's thermal and electrical requirements. It's essential to perform thermal simulations and testing to ensure the device operates within its recommended operating conditions.
The TAS5729MDDCAR has a built-in overcurrent protection feature that can be enabled by connecting the OCP pin to a resistor and capacitor network. This feature detects overcurrent conditions and shuts down the device to prevent damage. Additionally, you can implement external short-circuit protection using a current sense resistor and a comparator or a dedicated overcurrent protection IC.
The recommended clock frequency for the TAS5729MDDCAR is 256 fs (38400 kHz) or 512 fs (76800 kHz). However, the actual clock frequency depends on the application's requirements and the desired audio quality. It's essential to ensure the clock frequency is stable and jitter-free to maintain optimal audio performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5729MDDCAR Overview

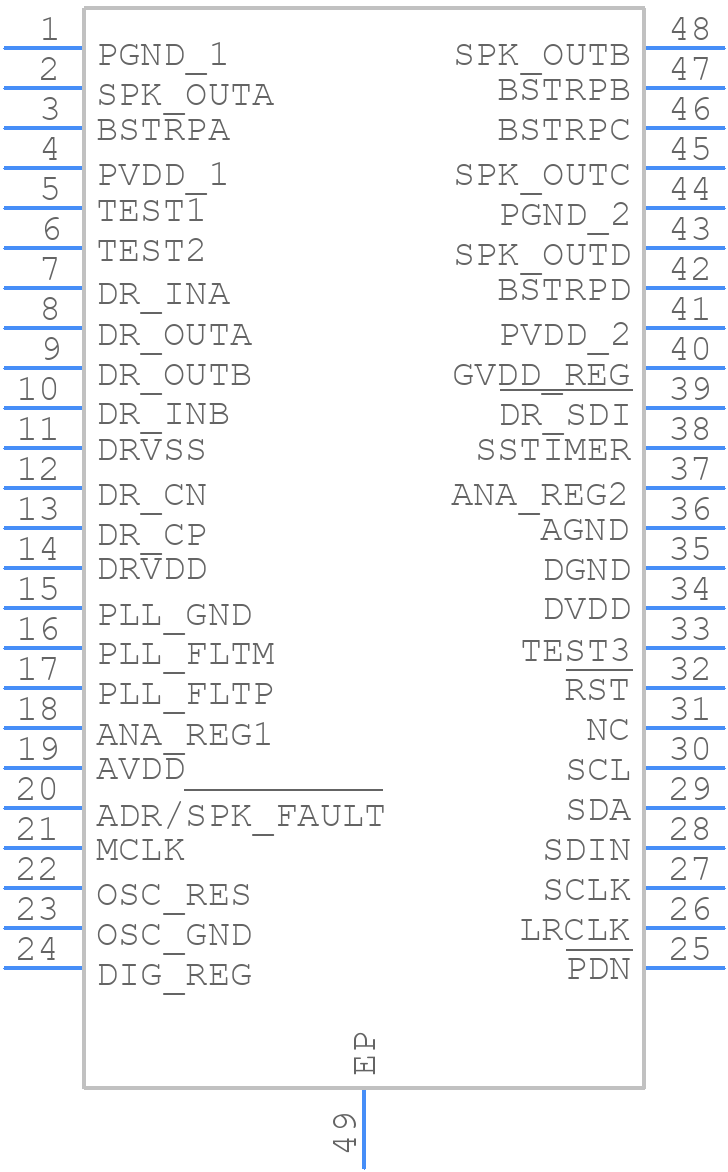

Use the download button to access the TAS5729MDDCAR schematic symbol, PCB footprint, and 3D model.
