FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
50 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
TAS5731MPHPR Frequently Asked Questions (FAQs)
A good PCB layout for the TAS5731MPHPR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a shielded inductor and keeping the high-current paths short can help reduce EMI.
To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the package. Also, minimize the power dissipation by optimizing the system design and using the device within its recommended operating conditions.
The recommended settings for the digital interface include using a clock frequency of 256 fs or 512 fs, setting the data format to I2S, and configuring the device for master mode. Additionally, ensure that the digital interface is properly terminated and that the clock and data lines are properly routed.
To troubleshoot issues with the audio output, check the device's configuration and settings, ensure that the clock and data lines are properly routed, and verify that the audio data is being transmitted correctly. Also, check for any signs of overheating, power supply issues, or electromagnetic interference.
The recommended power supply decoupling capacitors for the TAS5731MPHPR include a 10 μF ceramic capacitor and a 1 μF ceramic capacitor, both with a voltage rating of 10 V or higher. These capacitors should be placed as close as possible to the device's power pins.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5731MPHPR Overview

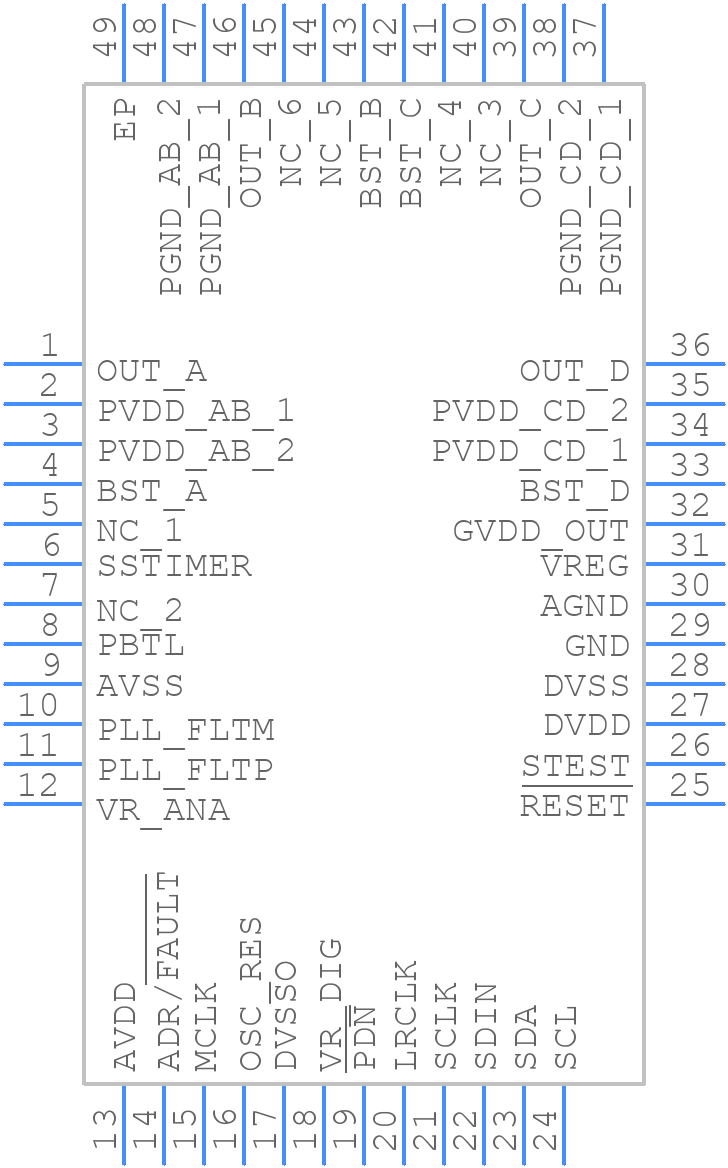

Use the download button to access the TAS5731MPHPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
