FLATPACK, HEAT SINK/SLUG, THIN PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max:
68 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
QUAD
Time@Peak Reflow Temperature-Max (s):
30
Width:
7 mm
TAS5731PHP Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5731PHP evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and thermal dissipation.
To optimize the TAS5731PHP for low noise and EMI, follow the recommended PCB layout, use a solid ground plane, and decouple the power supplies with high-quality capacitors. Additionally, use shielding and filtering techniques, such as ferrite beads and common-mode chokes, to reduce radiated emissions.
The maximum power dissipation of the TAS5731PHP depends on the operating conditions, such as supply voltage, output power, and ambient temperature. According to the datasheet, the maximum power dissipation is approximately 15W at 25°C ambient temperature. However, it's recommended to perform thermal analysis and simulation to determine the maximum power dissipation for a specific application.
Yes, the TAS5731PHP is a Class-D audio amplifier, and it's designed to operate in a Class-D configuration. The device includes a built-in PWM generator and a high-current output stage, making it suitable for high-efficiency Class-D amplifier designs.
The TAS5731PHP can be configured for stereo or mono operation by setting the appropriate pins and registers. For stereo operation, connect the left and right channel inputs to separate pins and configure the device for stereo mode using the I2C interface. For mono operation, connect the input signal to both left and right channel inputs and configure the device for mono mode.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5731PHP Overview

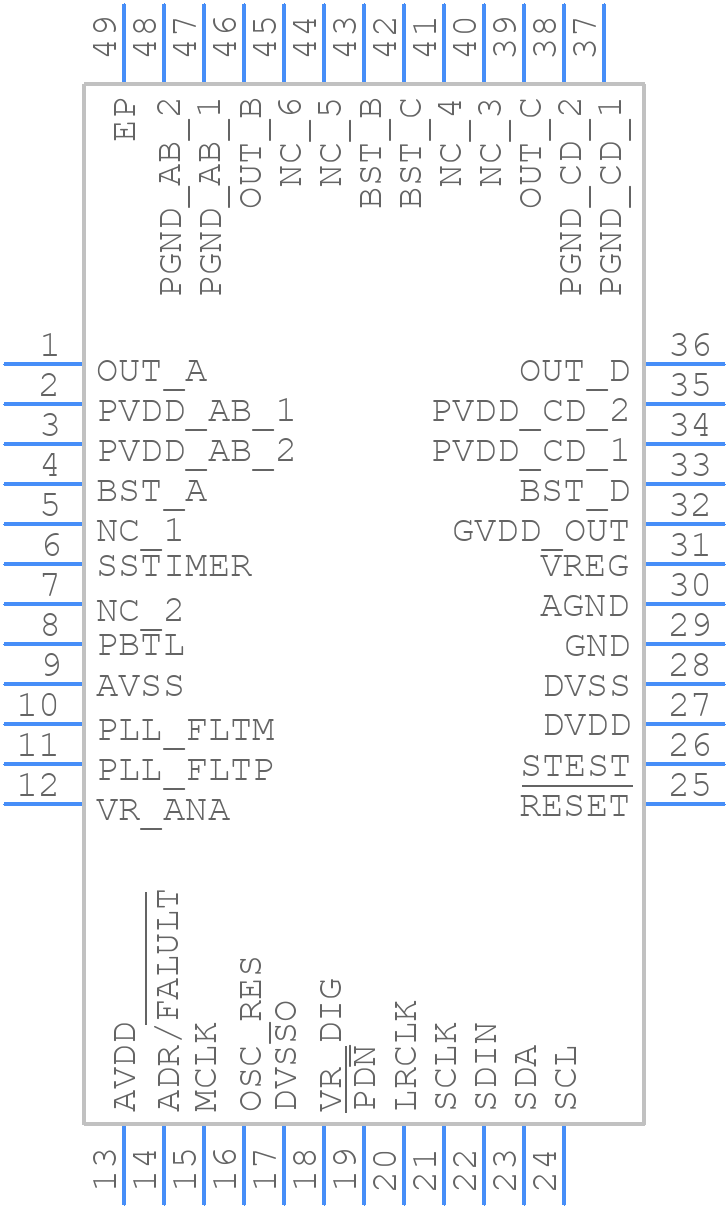

Use the download button to access the TAS5731PHP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
