SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Current-Max:
68 mA
Supply Voltage-Max (Vsup):
3.6 V
Supply Voltage-Min (Vsup):
3 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5751MDCA Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5751MDCA evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
To optimize the TAS5751MDCA for low distortion and high efficiency, it's crucial to select the correct output filter components, ensure proper thermal management, and adjust the device's gain and bias settings. Additionally, using a high-quality power supply and minimizing the output impedance can also help achieve optimal performance.
The TAS5751MDCA can handle up to 20W of output power, but this depends on the specific application, PCB layout, and thermal management. It's essential to ensure that the device is properly cooled and that the output stage is designed to handle the maximum expected power output.
To troubleshoot common issues with the TAS5751MDCA, start by checking the power supply voltage, output stage components, and PCB layout for any errors or defects. Use an oscilloscope to measure the output waveform and identify any signs of oscillation or distortion. Additionally, ensure that the device is properly cooled, and check for any signs of overheating, such as excessive temperature or thermal shutdown.
Yes, the TAS5751MDCA is a class-D audio amplifier, and it's designed to be used in class-D amplifier designs. It provides a high-efficiency, low-distortion output stage that's well-suited for a wide range of audio applications, including home audio systems, automotive audio systems, and professional audio equipment.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5751MDCA Overview

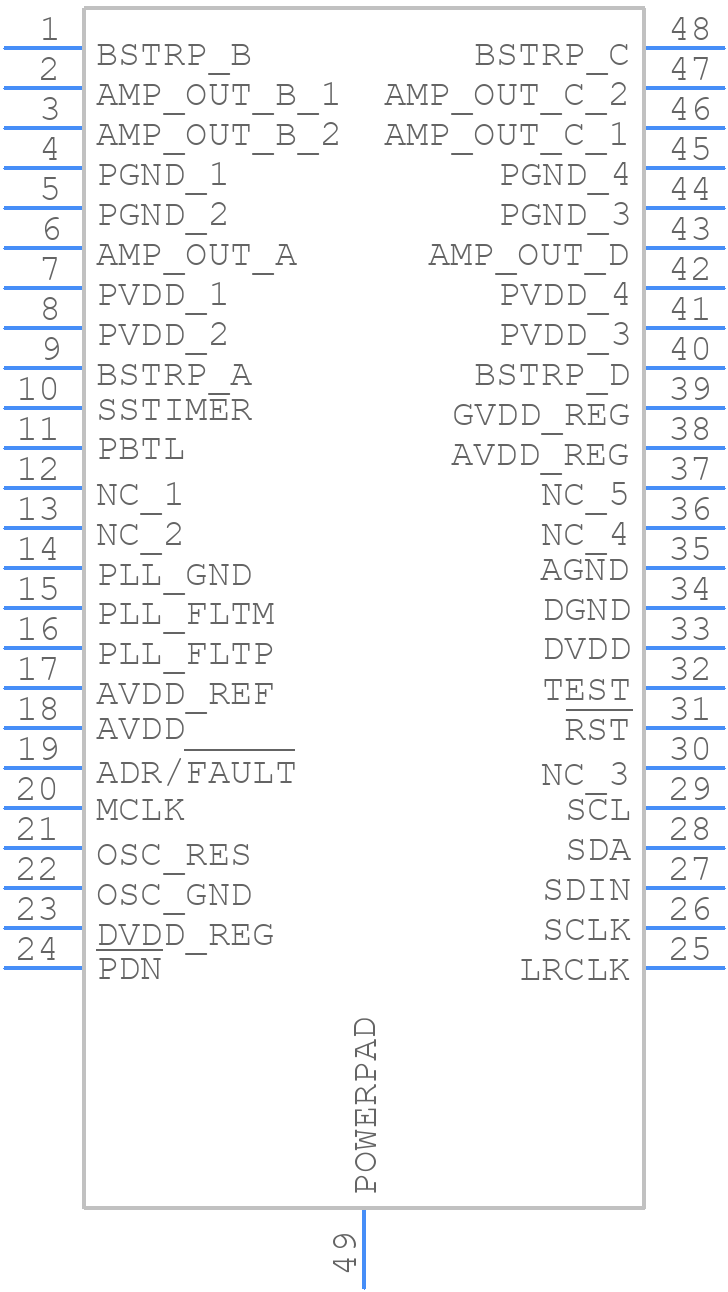

Use the download button to access the TAS5751MDCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
