Part Image

TAS5756MDCA - Texas Instruments

Description: 30W digital input, closed loop, Class-D amplifier with Enhanced processing

Download TAS5756MDCA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

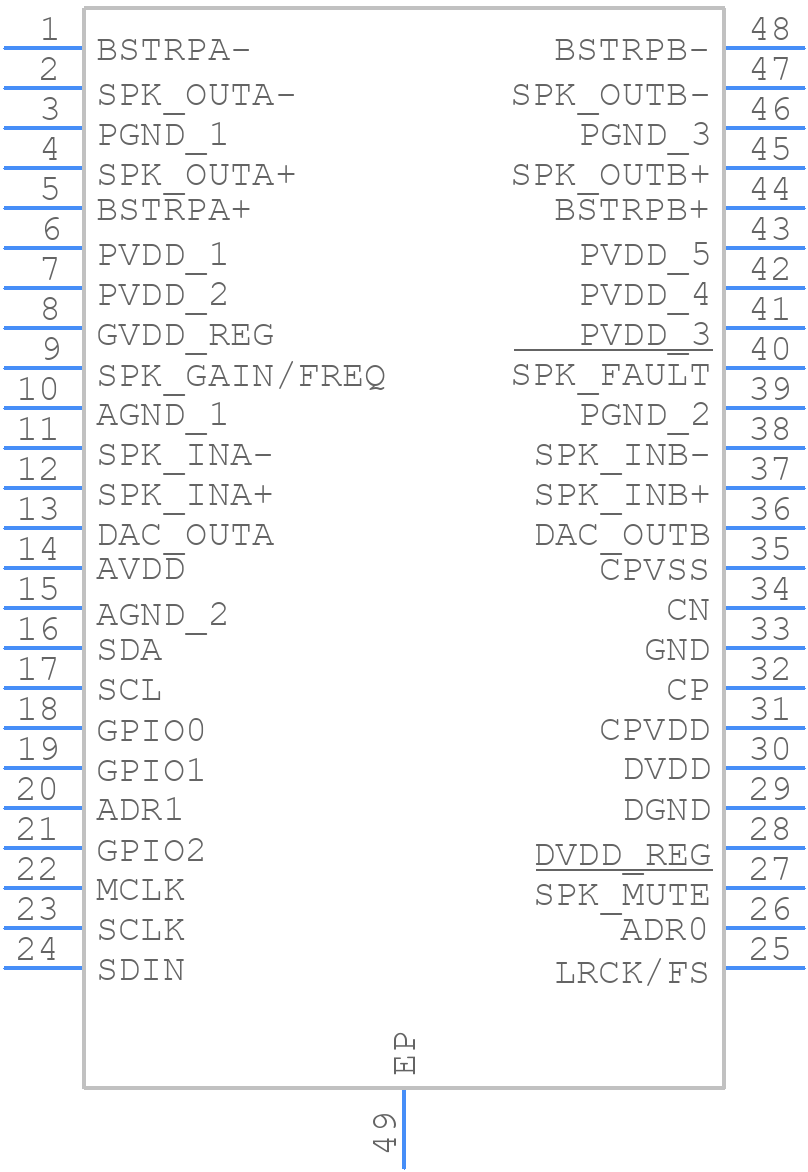

TAS5756MDCA - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5756MDCA - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCA (R-PDSO-G48)
click to zoom
3D Models
TAS5756MDCA - Texas Instruments - 3D model - Small Outline Packages - DCA (R-PDSO-G48)
click to zoom

TAS5756MDCA Details

  • Manufacturer Part Number:

    TAS5756MDCA

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CLASS D AUDIO AMPLIFIER

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    104 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Power-Nom:

    40 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    26.4 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TAS5756MDCA Frequently Asked Questions (FAQs)

  • A good PCB layout for the TAS5756MDCA involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. TI provides a recommended PCB layout in the datasheet and application notes.
  • To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the package. TI provides thermal design guidelines in the datasheet and application notes.
  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper device initialization and prevents latch-up.
  • To troubleshoot audio artifacts or distortion, check the power supply voltage, clock frequency, and digital signal integrity. Ensure that the device is properly configured and that the analog and digital grounds are separated. Use an oscilloscope to analyze the audio signal and clock signals.
  • The maximum allowed clock jitter for the TAS5756MDCA is 100 ps RMS. Exceeding this limit can cause audio artifacts and distortion. Use a high-quality clock source and ensure that the clock signal is properly filtered and decoupled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAS5756MDCA Overview

Use the download button to access the TAS5756MDCA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57, or try a keyword search, such as Audio/Video Amplifiers
