SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
16.5 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.2 mm
TAS5760LDAPR Frequently Asked Questions (FAQs)
The recommended power-up sequence is to apply PVDD first, followed by AVDD, and then DVDD. This ensures that the internal voltage regulators are powered up in the correct order.
To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the package. Additionally, minimize the power dissipation by optimizing the system design and reducing the current consumption.
The maximum allowed capacitance for the AVDD and DVDD power pins is 10uF. Exceeding this value may cause power-up issues or affect the device's performance.
To troubleshoot audio artifacts or distortion issues, check the power supply voltage, ensure proper grounding, and verify the clock and data signal integrity. Also, check the audio signal levels and impedance matching, and ensure that the device is operated within the recommended operating conditions.
Keep digital and analog signals separate, use a solid ground plane, and avoid crossing digital and analog signals. Use a star topology for the power supply connections, and keep the clock signal traces short and shielded.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5760LDAPR Overview

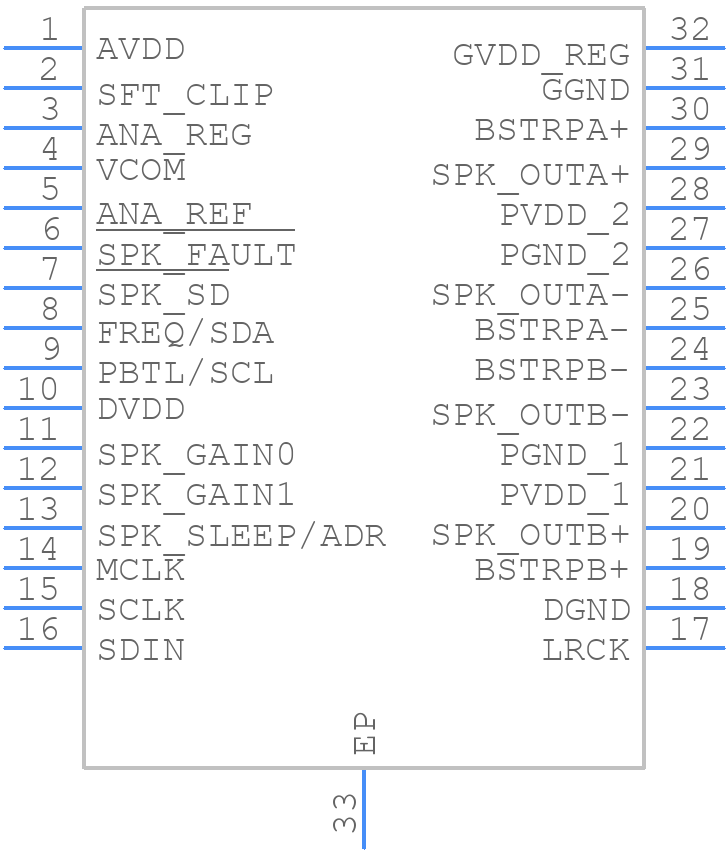

Use the download button to access the TAS5760LDAPR schematic symbol, PCB footprint, and 3D model.
