SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
26.4 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5760MDDCAR Frequently Asked Questions (FAQs)
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures proper initialization of the device.
The TAS5760MDDCAR can be configured for mono or stereo operation through the MODE pin. For mono operation, tie the MODE pin to GND, and for stereo operation, tie it to DVDD. Additionally, the I2S format can be set to mono or stereo through the I2S_CFG register.
The TAS5760MDDCAR can handle a maximum power of 20W per channel into a 4Ω load, with a maximum voltage supply of 12V. However, the actual power handling capability may vary depending on the application and thermal considerations.
The TAS5760MDDCAR has a built-in thermal protection circuit that shuts down the device when the junction temperature exceeds 150°C. Additionally, the device has a THERM pin that can be used to monitor the die temperature. The THERM pin can be connected to an ADC or a comparator to implement thermal monitoring and protection.
The recommended layout and routing for the TAS5760MDDCAR involves keeping the analog and digital power supply traces separate, using a solid ground plane, and minimizing the length of the clock signal trace. Additionally, it is recommended to place the device close to the power supply and to use a low-ESR capacitor for decoupling.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5760MDDCAR Overview

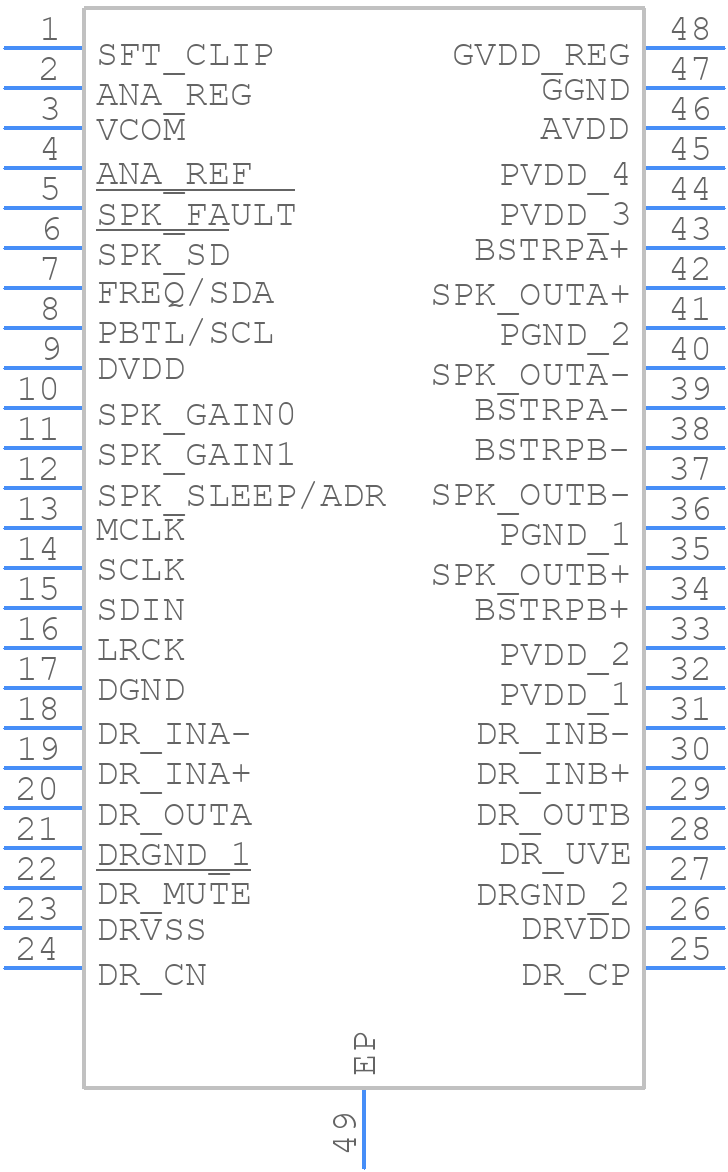

Use the download button to access the TAS5760MDDCAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio Control ICs
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
