TAS5766MRMTR - Texas Instruments

Description: 20W Class-D Stereo PurePath™ Smart Amp

Download TAS5766MRMTR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

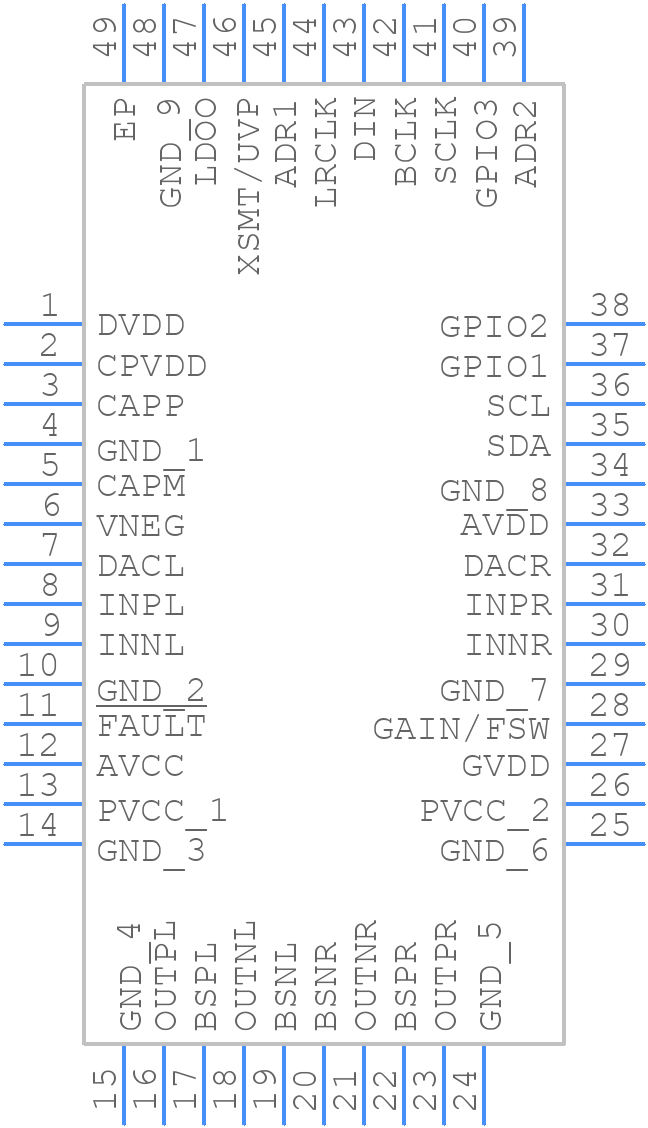

Symbol
TAS5766MRMTR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5766MRMTR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RMT0048A
click to zoom
3D Models
TAS5766MRMTR - Texas Instruments - 3D model - Quad Flat No-Lead - RMT0048A
click to zoom

TAS5766MRMTR Details

  • Manufacturer Part Number:

    TAS5766MRMTR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    20 dB

  • JESD-30 Code:

    R-PQCC-N48

  • JESD-609 Code:

    e4

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    106 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Power-Nom:

    50 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    15 mA

  • Supply Voltage-Max (Vsup):

    26.4 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

TAS5766MRMTR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TAS5766MRMTR involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. TI provides a recommended PCB layout in the datasheet and application notes.
  • To optimize thermal performance, ensure good airflow around the device, use a heat sink if possible, and avoid blocking the thermal pads on the package. TI provides thermal design guidelines in the datasheet and application notes.
  • The recommended power-up sequence is to apply the analog power supply (AVDD) first, followed by the digital power supply (DVDD), and then the clock signal. This ensures proper device initialization and prevents latch-up.
  • To troubleshoot audio artifacts or distortion, check the power supply voltage, clock frequency, and analog input signal quality. Ensure that the device is properly configured and that the analog and digital grounds are separated. Use an oscilloscope to analyze the audio signal and identify the source of the issue.
  • The maximum allowed clock jitter for the TAS5766MRMTR is 100 ppm. Exceeding this limit can cause audio artifacts or distortion. Use a high-quality clock source and ensure that the clock signal is clean and stable.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TAS5766MRMTR Overview

Use the download button to access the TAS5766MRMTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57, or try a keyword search, such as Audio/Video Amplifiers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
