TAS5768MDCAR - Texas Instruments

Description: 20W Class-D Stereo PurePath™ Smart Amp with Ternary Modulation

Download TAS5768MDCAR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

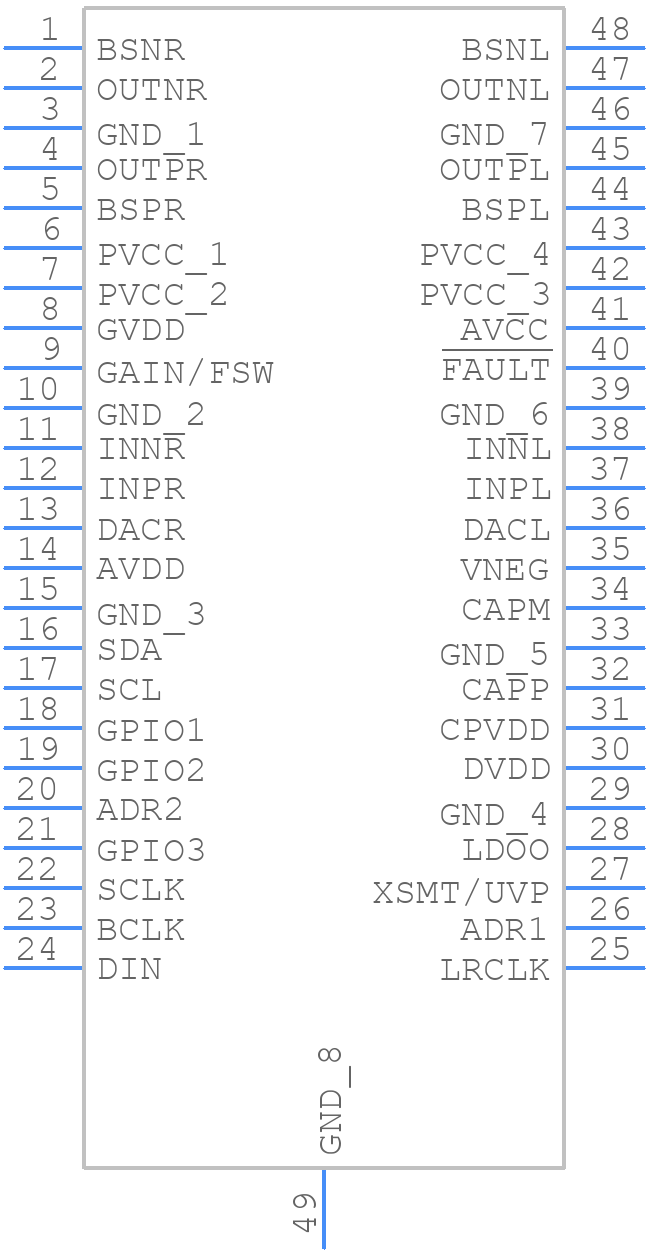

TAS5768MDCAR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TAS5768MDCAR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DCA (R-PDSO-G48)
click to zoom
3D Models
TAS5768MDCAR - Texas Instruments - 3D model - Small Outline Packages - DCA (R-PDSO-G48)
click to zoom

TAS5768MDCAR Details

  • Manufacturer Part Number:

    TAS5768MDCAR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bandwidth-Nom:

    22 kHz

  • Consumer IC Type:

    AUDIO AMPLIFIER

  • Gain:

    36 dB

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e4

  • Length:

    12.5 mm

  • Moisture Sensitivity Level:

    3

  • Noise Figure-Nom:

    106 dB

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Power-Nom:

    50 W

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    26.4 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    6.1 mm

TAS5768MDCAR Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to first power up the analog supply (AVDD), followed by the digital supply (DVDD), and then the clock signal (MCLK). This ensures proper initialization of the device.
  • The TAS5768MDCAR can be configured for mono or stereo operation by setting the MONO pin high or low, respectively. In mono mode, the left and right channels are summed and output on both channels. In stereo mode, the left and right channels are output separately.
  • The TAS5768MDCAR can handle up to 20W of power per channel into a 4Ω load, making it suitable for driving small to medium-sized speakers.
  • The TAS5768MDCAR has a built-in thermal protection circuit that shuts down the device when the junction temperature exceeds 150°C. The TSD pin can be used to monitor the thermal shutdown status. Additionally, an external thermal sensor can be connected to the THERM pin to provide additional thermal protection.
  • To minimize electromagnetic interference (EMI) and ensure proper operation, it is recommended to follow a star-grounding layout, keep analog and digital traces separate, and use a solid ground plane. Additionally, the device should be placed close to the power supply and away from noisy components.
