Texas Instruments provides a recommended PCB layout in the TAS5768MRMTR evaluation module (EVM) user's guide, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and minimize electromagnetic interference (EMI).
The TAS5768MRMTR supports various audio formats, including I2S, PCM, and SPDIF. Configuration is done through the device's registers, which can be accessed through the I2C or SPI interface. The device's datasheet and programming guide provide detailed information on how to configure the device for different audio formats.
The TAS5768MRMTR is a high-power audio amplifier capable of delivering up to 20W per channel into a 4Ω load. However, the maximum power handling capability depends on the specific application, thermal management, and PCB design. It is recommended to consult the device's datasheet and thermal design guide for more information.
Thermal management is critical for the TAS5768MRMTR, as it can operate at high temperatures. Texas Instruments recommends using a heat sink, thermal pad, or thermal interface material (TIM) to dissipate heat. The device's datasheet and thermal design guide provide guidelines for thermal management, including thermal resistance calculations and heat sink design recommendations.
The TAS5768MRMTR is a high-frequency device that can generate electromagnetic interference (EMI). To minimize EMI and ensure electromagnetic compatibility (EMC), Texas Instruments recommends following proper PCB layout and design guidelines, using shielding, and implementing filtering and decoupling techniques. The device's datasheet and EMI/EMC application note provide more information on EMI and EMC considerations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5768MRMTR Overview

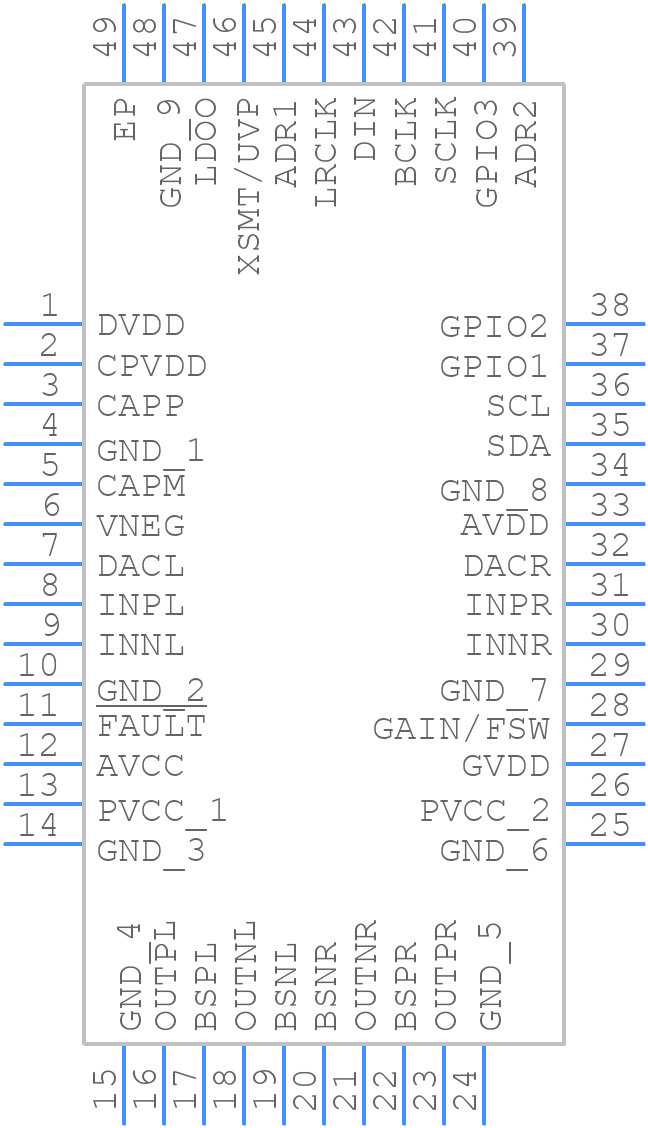

Use the download button to access the TAS5768MRMTR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
