SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
26.4 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5780MDCAR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout guide in the TAS5780MDCAR Evaluation Module User's Guide (SLAU575). It's essential to follow this guide to ensure proper thermal management, noise reduction, and signal integrity.
The TAS5780MDCAR supports various audio formats, including I2S, TDM, and PWM. Configuration is done through the device's registers, which can be accessed via the I2C or SPI interface. Refer to the TAS5780MDCAR datasheet and the Audio Codec Interface (ACI) documentation for specific register settings and format configurations.
The TAS5780MDCAR is a high-power audio amplifier, capable of delivering up to 20W per channel into a 4Ω load. However, the maximum power handling capability depends on the specific application, thermal management, and PCB design. It's essential to follow the thermal design guidelines and power derating curves provided in the datasheet to ensure reliable operation.
The TAS5780MDCAR has built-in thermal protection and monitoring features. The device has a thermal warning flag (TWF) that can be monitored through the I2C or SPI interface. Additionally, the device has a thermal shutdown feature that can be configured to turn off the amplifier in case of overheating. Refer to the datasheet for specific implementation details and thermal management guidelines.
The TAS5780MDCAR requires a well-regulated power supply to ensure stable operation. Texas Instruments recommends using a low-dropout linear regulator (LDO) or a switching regulator with a low output voltage ripple. The power supply should be capable of delivering up to 1.5A of current, depending on the application. Refer to the datasheet for specific power supply requirements and recommendations.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5780MDCAR Overview

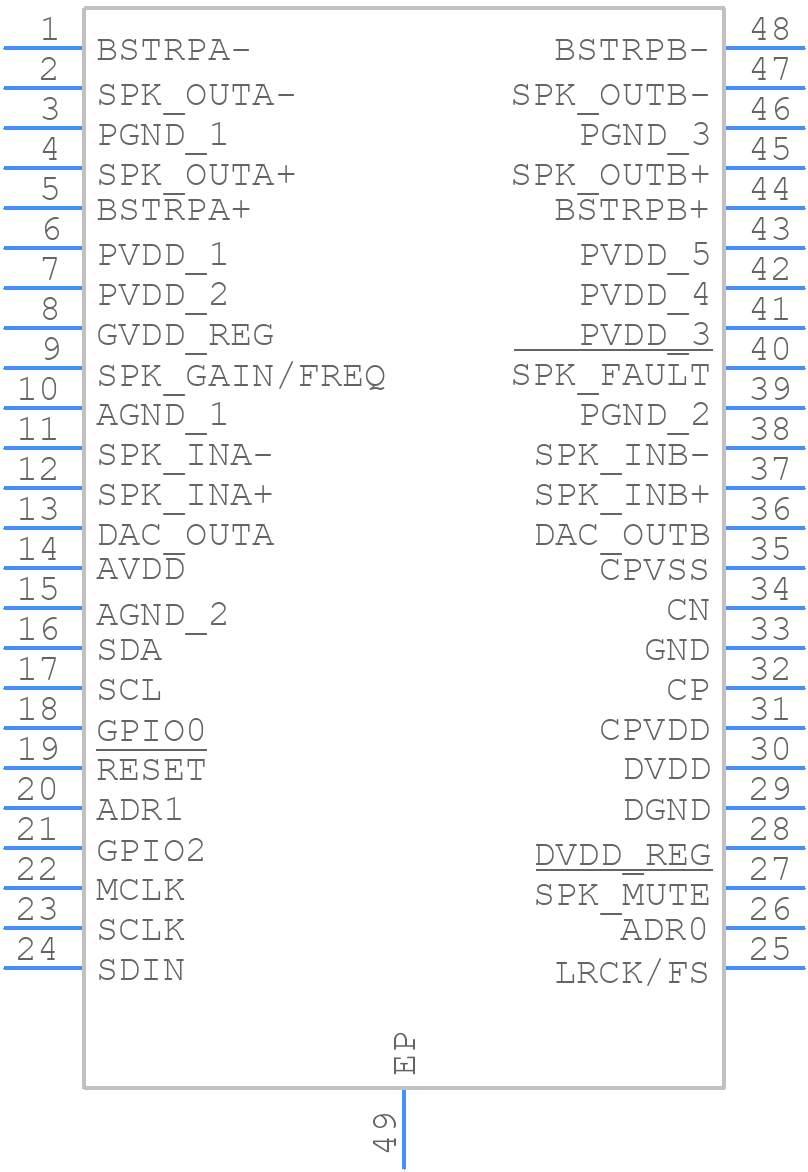

Use the download button to access the TAS5780MDCAR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS57,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
