SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
26.4 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
6.1 mm
TAS5782MDCAR Frequently Asked Questions (FAQs)
The recommended PCB layout for the TAS5782MDCAR is a 4-layer board with a solid ground plane on the bottom layer, and a split power plane on the top layer. This helps to reduce EMI and improve thermal performance.
To optimize thermal performance, ensure good airflow around the device, use a heat sink with a thermal interface material, and avoid blocking the thermal pads on the package. Also, consider using a thermal relief pattern on the PCB to improve heat dissipation.
The recommended power-up sequence is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the clock signal. This ensures proper device initialization and prevents latch-up.
The TAS5782MDCAR can be configured for different audio formats using the I2C interface. The device supports various audio formats, including PCM, I2S, and TDM. The specific configuration depends on the application and the audio format required.
The TAS5782MDCAR can handle up to 20W of output power per channel. However, the actual power handling capability depends on the specific application, PCB design, and thermal management.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5782MDCAR Overview

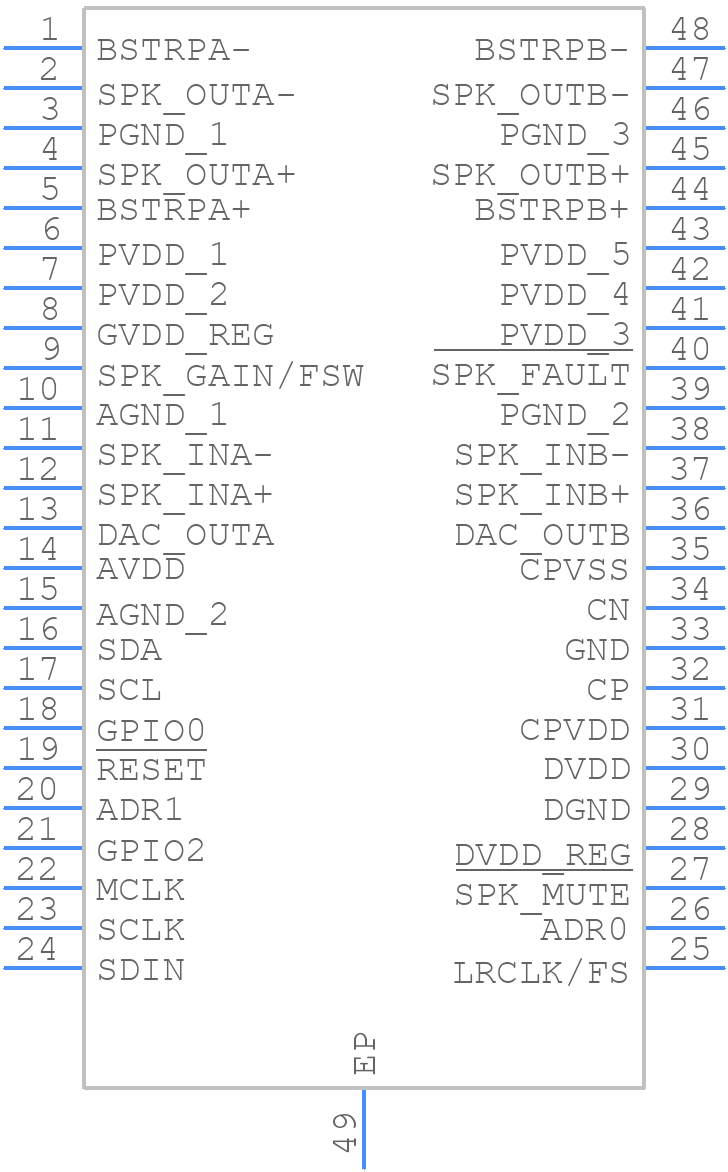

Use the download button to access the TAS5782MDCAR schematic symbol, PCB footprint, and 3D model.
