SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.15 mm
Supply Voltage-Max (Vsup):
26.4 V
Supply Voltage-Min (Vsup):
4.5 V
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Width:
6.1 mm
TAS5828MDADR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TAS5828MDADR evaluation module documentation, which includes guidelines for component placement, routing, and thermal management. It's essential to follow these guidelines to ensure optimal performance and minimize electromagnetic interference (EMI).
The TAS5828MDADR can be configured for different audio formats using the I2C interface. The device has several registers that control the audio format, sample rate, and bit depth. Refer to the datasheet and the TAS5828MDADR programming guide for detailed information on how to configure the device for specific audio formats.
The maximum power dissipation of the TAS5828MDADR depends on the operating conditions, such as supply voltage, output power, and ambient temperature. According to the datasheet, the maximum power dissipation is approximately 3.5W. However, it's essential to perform thermal analysis and design a suitable thermal management system to ensure the device operates within its recommended operating conditions.
Yes, the TAS5828MDADR is a class-D audio amplifier, and it's designed to be used in class-D amplifier designs. The device has a built-in PWM generator and a high-power output stage, making it suitable for high-efficiency audio amplifier applications.
The TAS5828MDADR has built-in ESD protection, but it's still essential to follow proper ESD handling procedures during manufacturing and assembly. Additionally, the device has overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage transients. It's recommended to add external protection components, such as TVS diodes and resistors, to further protect the device from ESD and overvoltage events.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TAS5828MDADR Overview

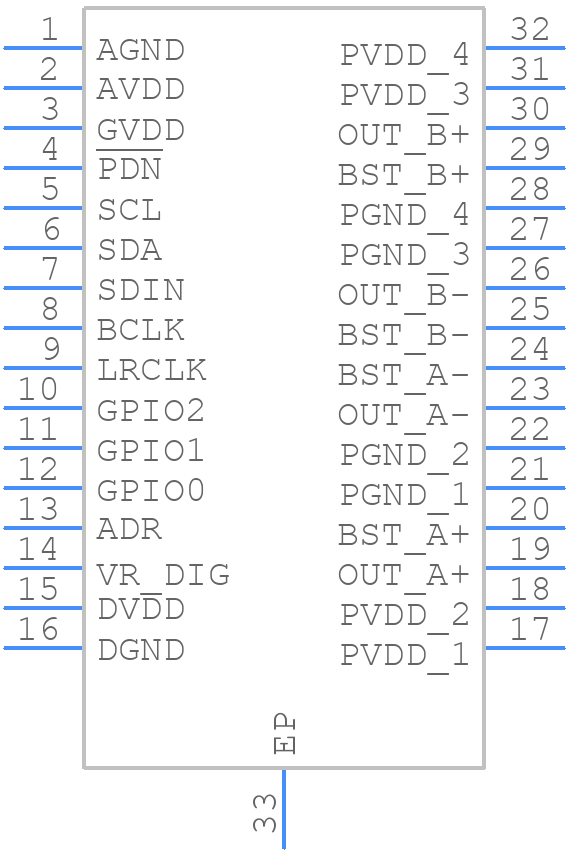

Use the download button to access the TAS5828MDADR schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like TAS58,
or try a keyword search, such as Audio/Video Amplifiers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
