Texas Instruments provides a recommended PCB layout in the TB5R1DW datasheet (Section 10.1) and in the TB5R1DW Evaluation Module User's Guide. It's essential to follow these guidelines to minimize noise, ensure proper thermal management, and optimize signal integrity.
The input capacitor values depend on the input voltage, output voltage, and desired output ripple. TI provides a capacitor selection guide in the datasheet (Section 9.2) and in the TB5R1DW Calculator Tool. It's recommended to use X7R or X5R ceramic capacitors with a voltage rating of at least 1.5 times the input voltage.
The TB5R1DW can deliver up to 1 A of output current. However, the maximum output current is dependent on the input voltage, output voltage, and thermal conditions. It's essential to ensure the device operates within the recommended operating conditions to avoid overheating and maintain reliability.
The TB5R1DW has a built-in OCP and SCP feature. To implement it, connect the OCP pin to a resistor divider network that sets the current limit threshold. The device will automatically shut down when the output current exceeds the set threshold. For SCP, connect the SCP pin to a resistor divider network that sets the short-circuit detection threshold.
To ensure reliable operation, it's essential to provide adequate thermal management. TI recommends using a thermal pad or heat sink with a thermal resistance of less than 10°C/W. Ensure good airflow around the device, and avoid blocking the thermal pad or heat sink with components or obstacles.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TB5R1DW Overview

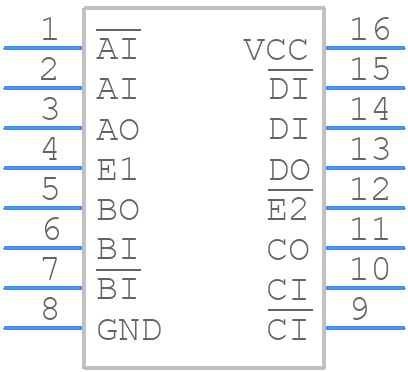

Use the download button to access the TB5R1DW schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TB5R1,
or try a keyword search, such as Line Driver or Receivers
