TB6584AFNG - Toshiba

Description: 3-Phase Full-Wave Sine-Wave PWM Brushless Motor Controller

Download TB6584AFNG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

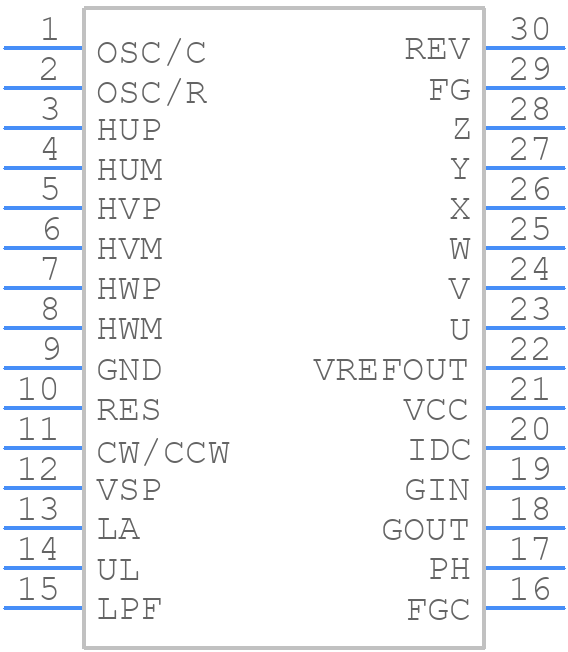

TB6584AFNG - Toshiba - PCB symbol
click to zoom
PCB Footprints
TB6584AFNG - Toshiba PCB footprint - Small Outline Packages - Small Outline Packages - SSOP30-P-300-0.65_2024
click to zoom
3D Models
TB6584AFNG - Toshiba - 3D model - Small Outline Packages - SSOP30-P-300-0.65_2024
click to zoom

TB6584AFNG Details

  • Manufacturer Part Number:

    TB6584AFNG

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SSOP-30

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    0

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    9.7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    115 °C

  • Operating Temperature-Min:

    -30 °C

  • Output Current-Max:

    0.002 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    SSOP30,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    16.5 V

  • Supply Voltage-Min (Vsup):

    6 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.6 mm

TB6584AFNG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a thermal relief pattern and a solid ground plane is recommended. Ensure a minimum of 1 oz copper thickness and a thermal via array under the IC to dissipate heat efficiently.
  • Implement a heat sink with a thermal interface material, ensure good airflow, and consider using a thermal sensor to monitor the device temperature. Also, follow the recommended operating conditions and derating guidelines.
  • The TB6584AFNG has built-in ESD protection diodes, but additional external protection may be necessary depending on the application. Follow proper PCB design and handling practices to prevent latch-up and ESD damage.
  • Yes, the TB6584AFNG is suitable for high-reliability and automotive applications. However, ensure compliance with relevant industry standards (e.g., AEC-Q100) and perform thorough testing and validation for your specific use case.
  • Follow the recommended soldering profile: peak temperature 240°C, time above 217°C 60-90 seconds. For rework, use a low-temperature soldering iron and a thermal protection device to prevent overheating.
