TB67S141HG - Toshiba

Description: Motor/Motion/Ignition Controllers & Drivers Stepping Motor Driver IC

Download TB67S141HG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

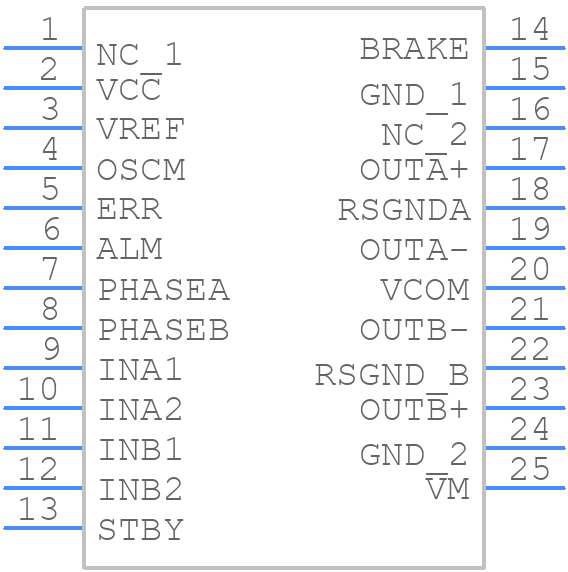

Symbol
TB67S141HG - Toshiba - PCB symbol
click to zoom

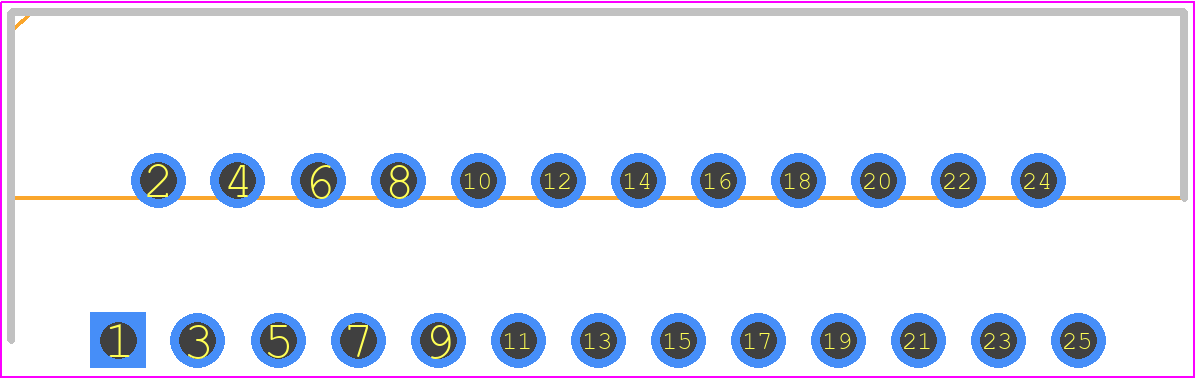

PCB Footprints
TB67S141HG - Toshiba PCB footprint - Transistor Outline, Vertical - Transistor Outline, Vertical - HZIP25-P-1.00F
click to zoom
3D Models
TB67S141HG - Toshiba - 3D model - Transistor Outline, Vertical - HZIP25-P-1.00F
click to zoom

TB67S141HG Details

  • Manufacturer Part Number:

    TB67S141HG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    20 Weeks

  • Manufacturer:

    Toshiba America Electronic Components

  • Analog IC - Other Type:

    STEPPER MOTOR CONTROLLER

  • JESD-30 Code:

    R-PZIP-T25

  • Length:

    28.8 mm

  • Number of Functions:

    1

  • Number of Terminals:

    25

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current-Max:

    3 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SZIP

  • Package Equivalence Code:

    ZIP25,.16,.16,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    19.37 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BCDMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    ZIG-ZAG

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    4.5 mm

TB67S141HG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TB67S141HG is -40°C to 125°C, but the recommended operating temperature range is -20°C to 85°C.
  • The maximum current rating for the TB67S141HG is dependent on the package type and the PCB design. Refer to the thermal derating curve in the datasheet to determine the maximum current rating for your specific application.
  • The VCC pin is the power supply pin for the internal logic circuitry of the TB67S141HG. It should be connected to a stable 5V power supply and decoupled with a capacitor to ensure proper operation.
  • Yes, the TB67S141HG can be used to drive a stepper motor. However, it is primarily designed for DC brushed motor applications, and the control logic may need to be modified to accommodate the stepper motor's unique requirements.
  • The minimum input pulse width required for the TB67S141HG is typically around 100ns, but this can vary depending on the specific application and the clock frequency used.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TB67S141HG Overview

Use the download button to access the TB67S141HG schematic symbol, PCB footprint, and 3D model.
