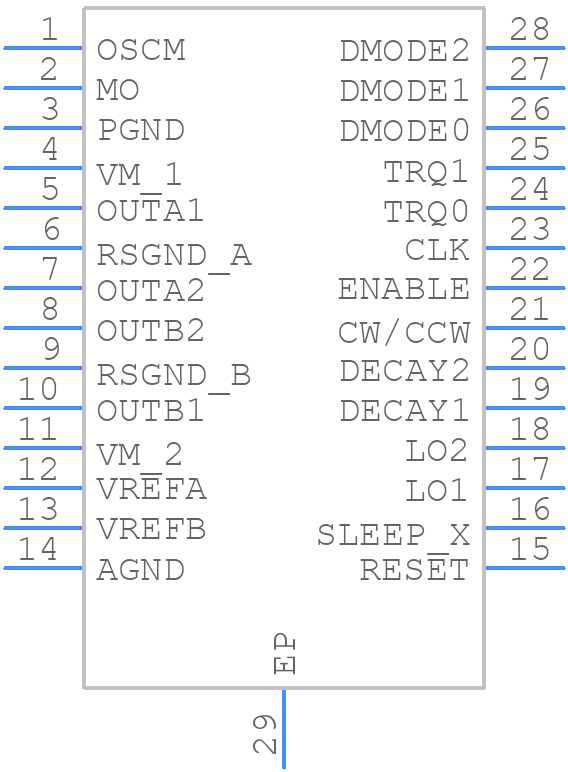

TB67S589FNG - Toshiba

TB67S589FNG Details

• Manufacturer Part Number:

  TB67S589FNG

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  HTSSOP-28

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Toshiba America Electronic Components

• YTEOL:

  5

• Analog IC - Other Type:

  STEPPER MOTOR CONTROLLER

• JESD-30 Code:

  R-PDSO-G28

• Length:

  9.7 mm

• Number of Functions:

  1

• Number of Terminals:

  28

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  3 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP28,.25

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Seated Height-Max:

  1.2 mm

• Supply Current-Max (Isup):

  8.2 mA

• Supply Voltage-Max (Vsup):

  44 V

• Supply Voltage-Min (Vsup):

  8.2 V

• Supply Voltage-Nom (Vsup):

  24 V

• Surface Mount:

  YES

• Technology:

  BCDMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Width:

  4.4 mm
