TB9051FTG - Toshiba

Description: PWM type single channel H-Bridge DC brushed motor driver for automotive use

Download TB9051FTG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

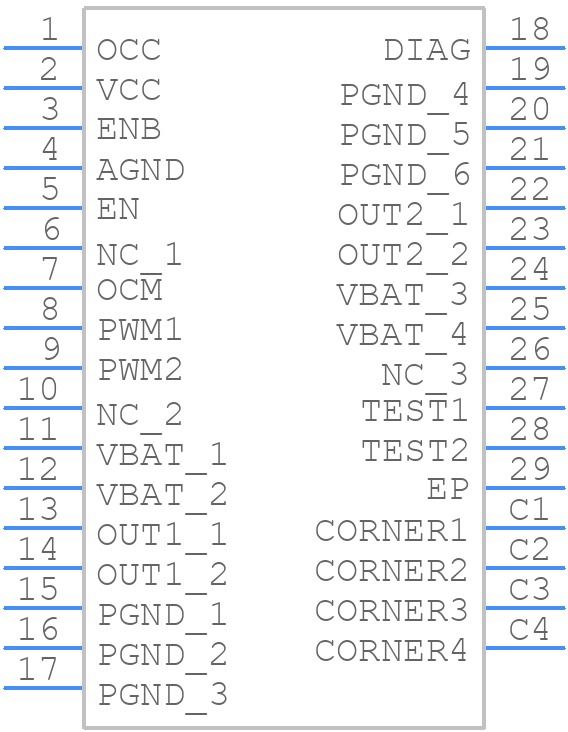

TB9051FTG - Toshiba - PCB symbol
click to zoom
PCB Footprints
TB9051FTG - Toshiba PCB footprint - Other - Other - TB9051FTG-6
click to zoom
3D Models
TB9051FTG - Toshiba - 3D model - Other - TB9051FTG-6
click to zoom

TB9051FTG Details

  • Manufacturer Part Number:

    TB9051FTG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-28

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQCC-N28

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    QCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Supply Voltage-Max (Vsup):

    28 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    8 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    QUAD

TB9051FTG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TB9051FTG is -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance.
  • To ensure the stability of the output voltage, it's recommended to use a ceramic capacitor with a capacitance value of 1uF or more, and an ESR of 1Ω or less, between the VOUT pin and the GND pin.
  • The minimum input voltage required for the TB9051FTG to operate is 2.7V, but it's recommended to use an input voltage of 3.0V or higher for optimal performance.
  • Yes, the TB9051FTG is designed to handle high currents up to 1.5A, but it's recommended to use a heat sink and ensure good thermal design to prevent overheating.
  • The output voltage of the TB9051FTG can be adjusted by using an external resistor divider network between the VOUT pin and the GND pin, and connecting the feedback pin to the center tap of the divider network.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TB9051FTG Overview

Use the download button to access the TB9051FTG schematic symbol, PCB footprint, and 3D model.
