TB9053FTG - Toshiba

Description: PWM-type, dual-channel, H-bridge, brushed DC motor driver for automotive application Surface Mount Build-in 2-ch H-Bridge driver

Download TB9053FTG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

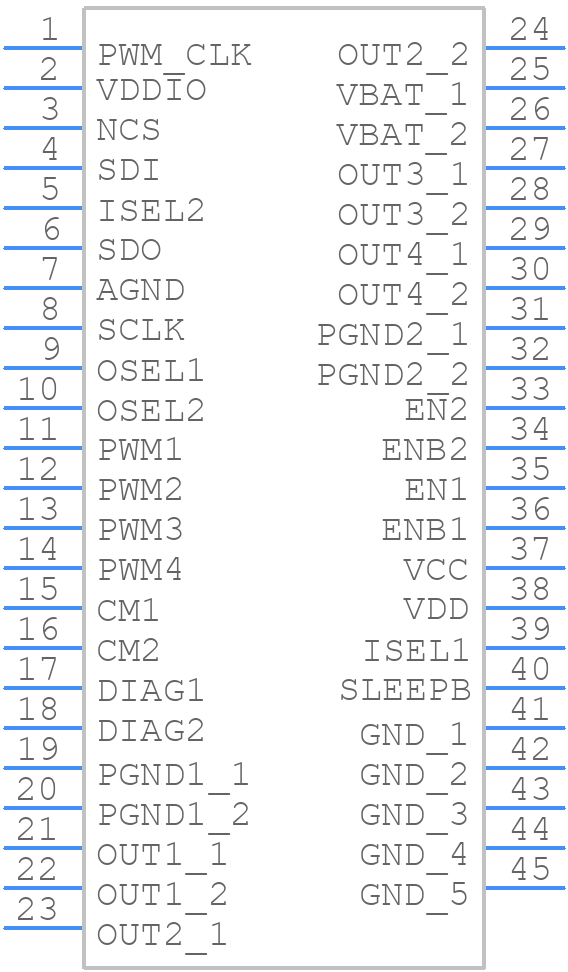

TB9053FTG - Toshiba - PCB symbol
click to zoom
PCB Footprints
TB9053FTG - Toshiba PCB footprint - Other - Other - P-LQFN40-0606-0.50-001
click to zoom
3D Models
TB9053FTG - Toshiba - 3D model - Other - P-LQFN40-0606-0.50-001
click to zoom

TB9053FTG Details

  • Manufacturer Part Number:

    TB9053FTG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    8

  • Analog IC - Other Type:

    HALF BRIDGE BRUSH DC MOTOR CONTROLLER

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TB9053FTG Overview

Use the download button to access the TB9053FTG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TB905, or try a keyword search, such as Motion Control Electronics
