TB9057FG - Toshiba

Description: Motor / Motion / Ignition Controllers & Drivers Motor H-Bridge Drvr Automotive; AEC-Q100

Download TB9057FG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

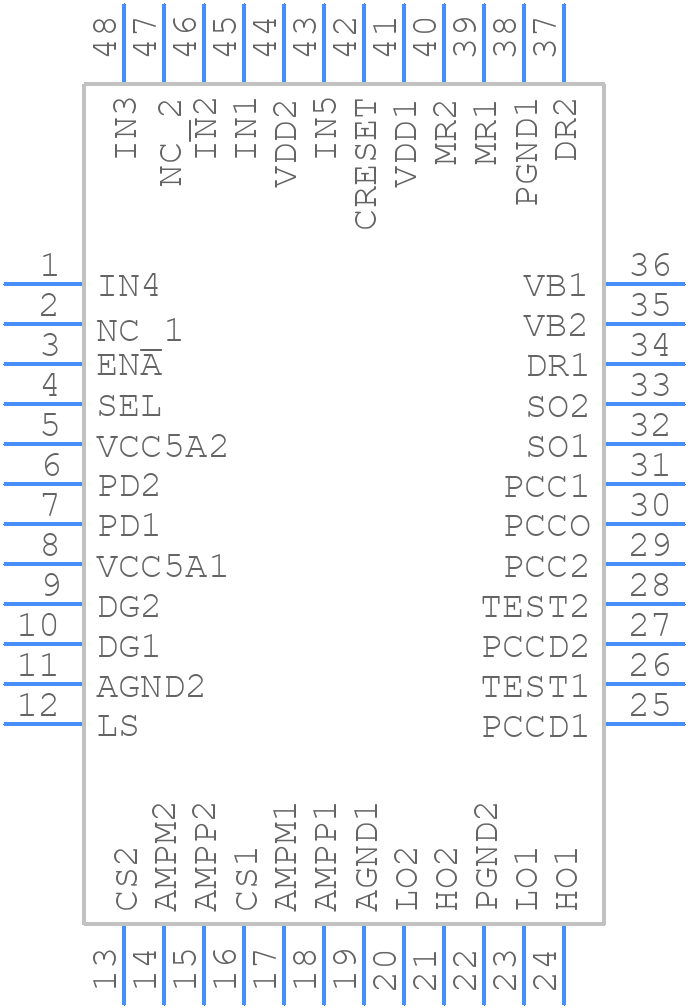

TB9057FG - Toshiba - PCB symbol
click to zoom
PCB Footprints
TB9057FG - Toshiba PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP48-P-0707-0.50C_2022
click to zoom
3D Models
TB9057FG - Toshiba - 3D model - Quad Flat Packages - LQFP48-P-0707-0.50C_2022
click to zoom

TB9057FG Details

  • Manufacturer Part Number:

    TB9057FG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Toshiba America Electronic Components

  • YTEOL:

    7.85

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-PQFP-G48

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max (Vsup):

    21 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    BICMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

TB9057FG Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the TB9057FG is -40°C to 125°C, but it's recommended to operate within -20°C to 85°C for optimal performance.
  • To ensure proper power-on and power-off, make sure to follow the recommended power-up and power-down sequences, and use a soft-start circuit to prevent inrush currents.
  • For optimal performance, it's recommended to follow a 4-layer PCB layout with a solid ground plane, and to keep the high-frequency components (such as the switching node) away from the low-frequency components (such as the input and output capacitors).
  • Choose input and output capacitors with low ESR, high ripple current rating, and a voltage rating that meets or exceeds the maximum input and output voltages. X5R or X7R ceramic capacitors are recommended.
  • The maximum allowable voltage drop across the internal FETs is 1.5V, but it's recommended to keep it below 1V to ensure optimal efficiency and reliability.
