TBA12-11EGWA - Kingbright

Description: LED MATRIX 5X7 1.2" HER/GRN

Download TBA12-11EGWA Model

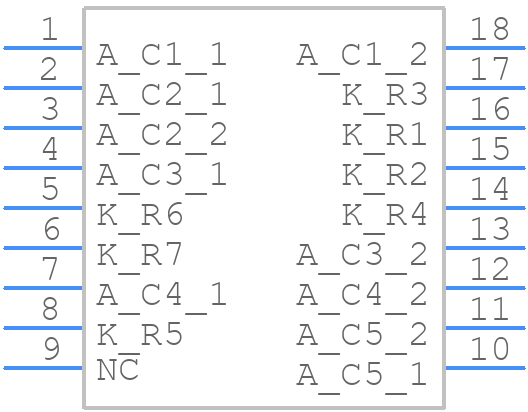

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

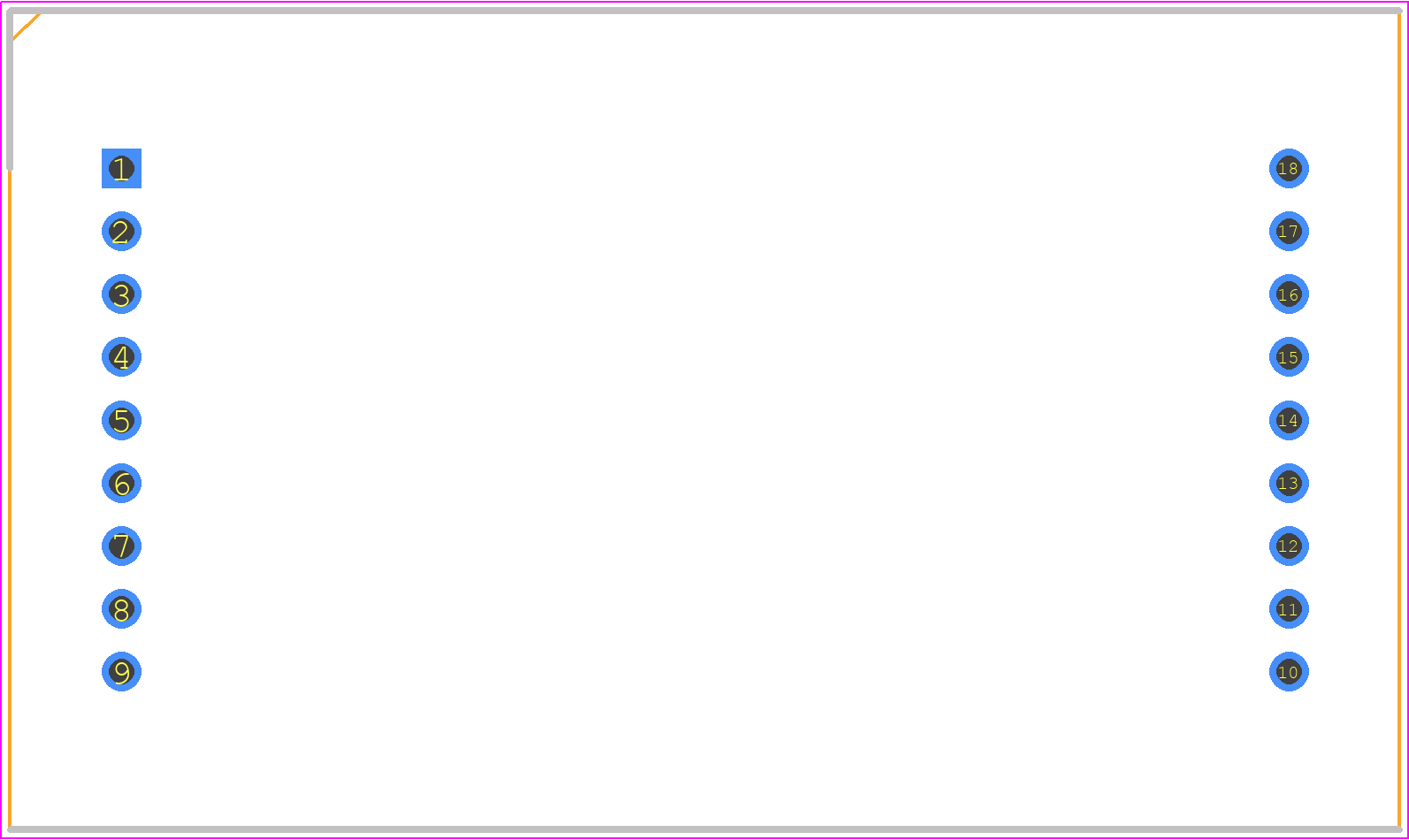

PCB Footprints
TBA12-11EGWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - TBA12-11EGWA
click to zoom

TBA12-11EGWA Details

  • Manufacturer Part Number:

    TBA12-11EGWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-18

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6.1

  • Color:

    HIGH EFFICIENCY RED/GREEN

  • Color@Wavelength:

    Green/Orange

  • Configuration:

    COMMON CATHODE, 1 DIGIT

  • Display Height:

    30 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    1

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    5 X 7 DOT MATRIX LED DISPLAY
